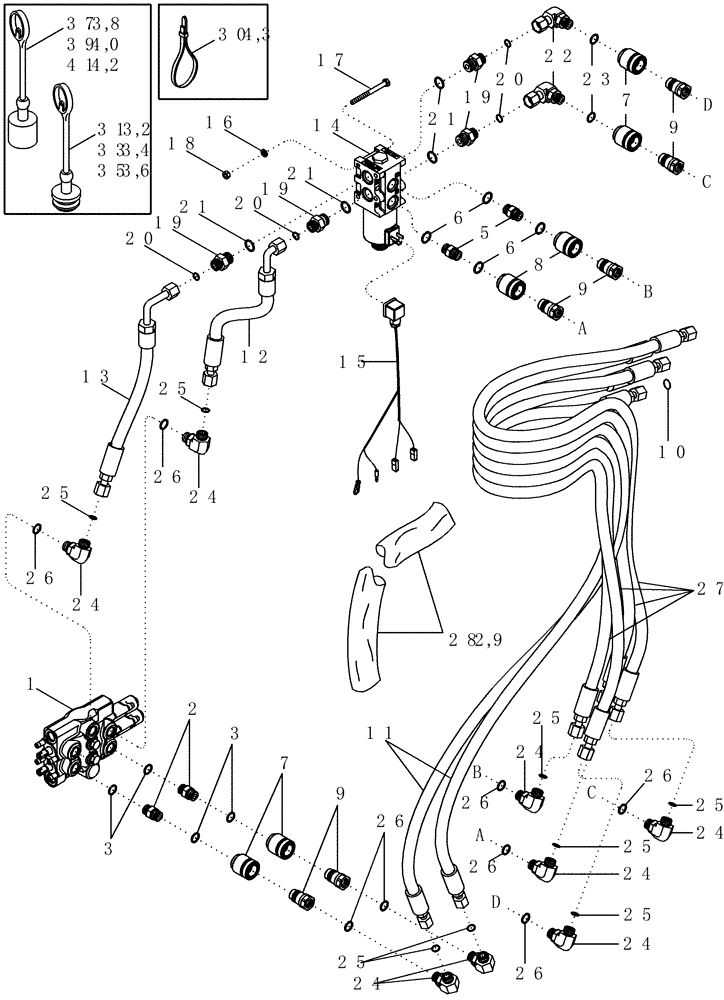

Запчасти Case IH LX132 (08-20) - HYDRAULICS - MID MOUNT, JX TRACTOR (2 FUNCTION STANDARD QUICK CONNECT AND 3RD FUNCTION DIVERTER KIT) (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Loader

1шт.

See Figure 08-16

1шт.

2

87412765

FITTING

Inc. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

5

87412807

FITTING

Inc. 6

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

7

87404023

COUPLING, QUICK, FEM

4шт.

8

399786A1

COUPLING

Female

2шт.

9

87404022

QUICK MALE COUPLING

Male

6шт.

10

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1/2 ID x 1/16

2шт.

11

87412138

HOSE,12.70 mm ID x 55.00 mm, SAE 100R17 CLASS 25 TYPE 1

Inc. 10, Loader Valve to Boom

2шт.

12

87414458

HOSE,12.70 mm ID x 1077.00 mm, SAE 100R17 CLASS 25 TYPE 1

Loader Valve to Diverter Valve

1шт.

13

87414459

HOSE,12.70 mm ID x 1180.00 mm, SAE 100R17 CLASS 25 TYPE 1

Loader Valve to Diverter Valve

1шт.

14

86983720

HYDRAULIC VALVE

Diverter

1шт.

See Figure 08-14

1шт.

15

87412484

HARNESS

1шт.

16

892-11008

LOCK WASHER,8mm ID

2шт.

17

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

M8 x 90

2шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

19

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 20, 21

4шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

201-349

90 ELBOW,90 Degree Elbow, 13/16" - 16 Female ORFS x 3/4" - 16 Male ORB

Inc. 23

2шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

24

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. 25, 26

8шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

395316A1

HOSE

1803 mm (71 in), Diverter, Serial Range: Valve-Boom

4шт.

28

87405292

SLEEVE

4 Hose, 66 inch

1шт.

29

87414489

SLEEVE

2 Hose, 78 inch

1шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

8шт.

31

327227A1

CAP

Male, Blue

1шт.

32

327228A1

CAP

Male, Orange

1шт.

33

327229A1

CAP

Male, Yellow

1шт.

34

327230A1

CAP

Male. Black

1шт.

35

327231A1

CAP

Male, Red

1шт.

36

327232A1

CAP

Male, Green

1шт.

37

333717A1

CAP

Female, Blue

1шт.

38

333718A1

CAP

Female, Orange

1шт.

39

333719A1

CAP

Female, Yellow

1шт.

40

333720A1

CAP

Female, Black

1шт.

41

333721A1

CAP

Female, Red

1шт.

42

333722A1

CAP

Female, Green

1шт.

43

1985078C2

SET OF PARTS

Color Tie Straps

1шт.
