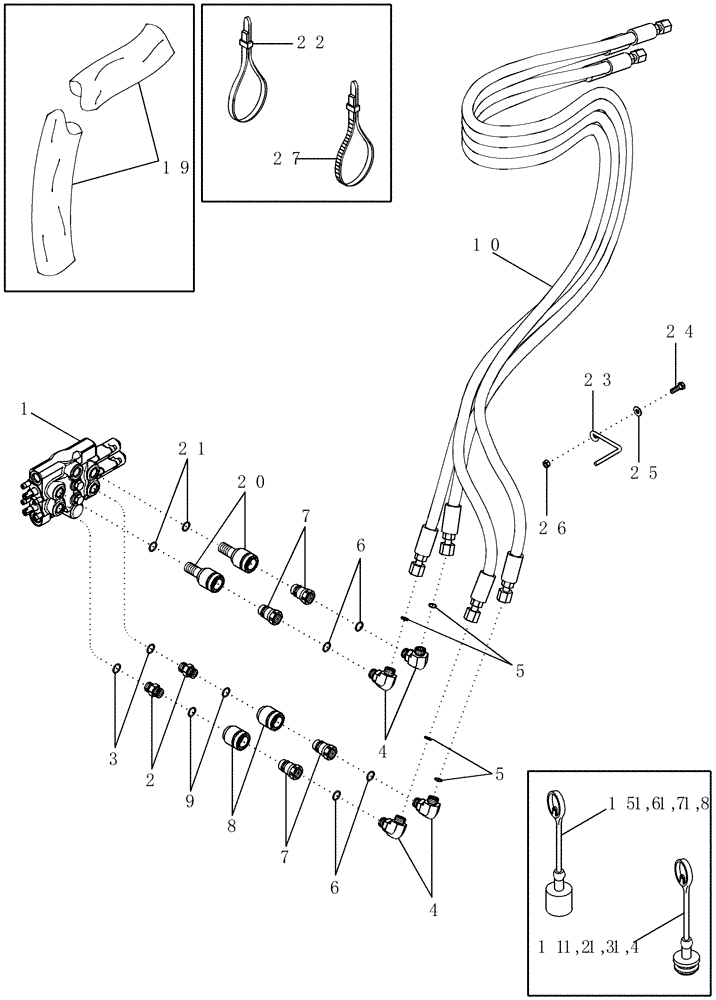

Запчасти Case IH LX132 (08-19) - HYDRAULICS - MID MOUNT, JX TRACTOR (2 FUNCTION STANDARD QUICK CONNECT) (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Loader

1шт.

See Figure 08-16

1шт.

2

87412765

FITTING

Inc. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. 5, 6

4шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

87404022

QUICK MALE COUPLING

Male

4шт.

8

87404023

COUPLING, QUICK, FEM

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

10

87412138

HOSE,12.70 mm ID x 55.00 mm, SAE 100R17 CLASS 25 TYPE 1

Inc. 9, Loader Valve to Boom

4шт.

11

327232A1

CAP

Male, Green

1шт.

12

327227A1

CAP

Male, Blue

1шт.

13

327229A1

CAP

Male, Yellow

1шт.

14

327231A1

CAP

Male, Red

1шт.

15

333722A1

CAP

Female, Green

1шт.

16

333717A1

CAP

Female, Blue

1шт.

17

333719A1

CAP

Female, Yellow

1шт.

18

333721A1

CAP

Female, Red

1шт.

19

87414488

SLEEVE

4 Hose, 78 inch

1шт.

20

87414457

COUPLING, QUICK, FEM

Inc. 21

2шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

23

87417839

RETAINER

Hose Loop

1шт.

24

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

25

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

26

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

27

1985078C2

SET OF PARTS

Color Tie Straps

1шт.
