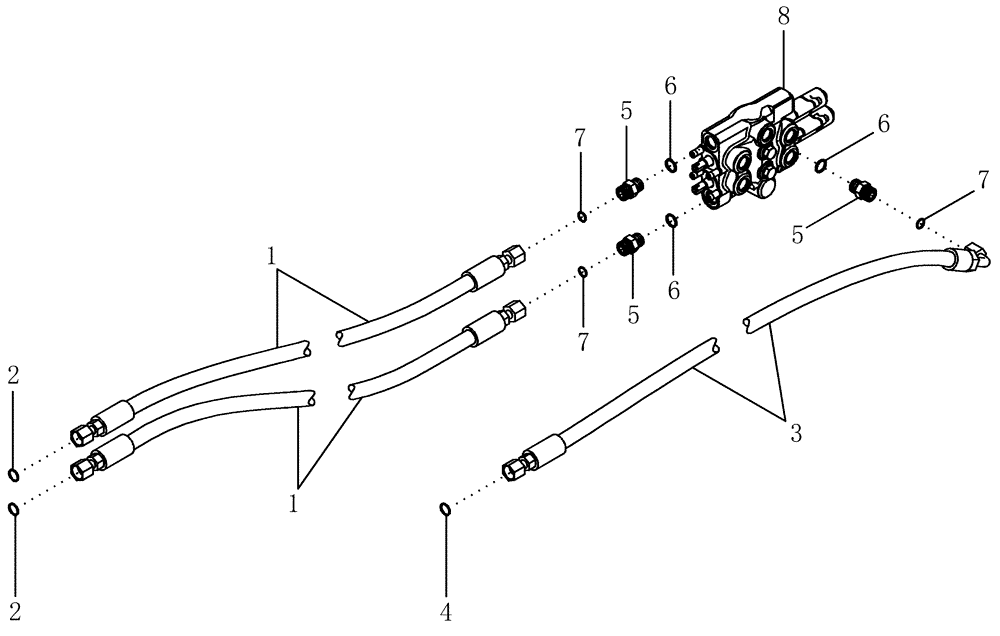

Запчасти Case IH LX132 (08-18) - HYDRAULICS - EXTERNAL VALVE, JX TRACTOR (08) - HYDRAULICS

1

87417073

HOSE,12.70 mm ID x 510.00 mm, SAE 100R17 CLASS 25 TYPE 1

Inlet and Outlet, Inc. 2

2шт.

2

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

3

87417074

HOSE,12.70 mm ID x 505.00 mm, SAE 100R17 CLASS 25 TYPE 1

Power Beyond, Inc. 4

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 6, 7

3шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

REF

INSTRUCTION

Valve, Loader

1шт.

See Figure 08-16

1шт.
