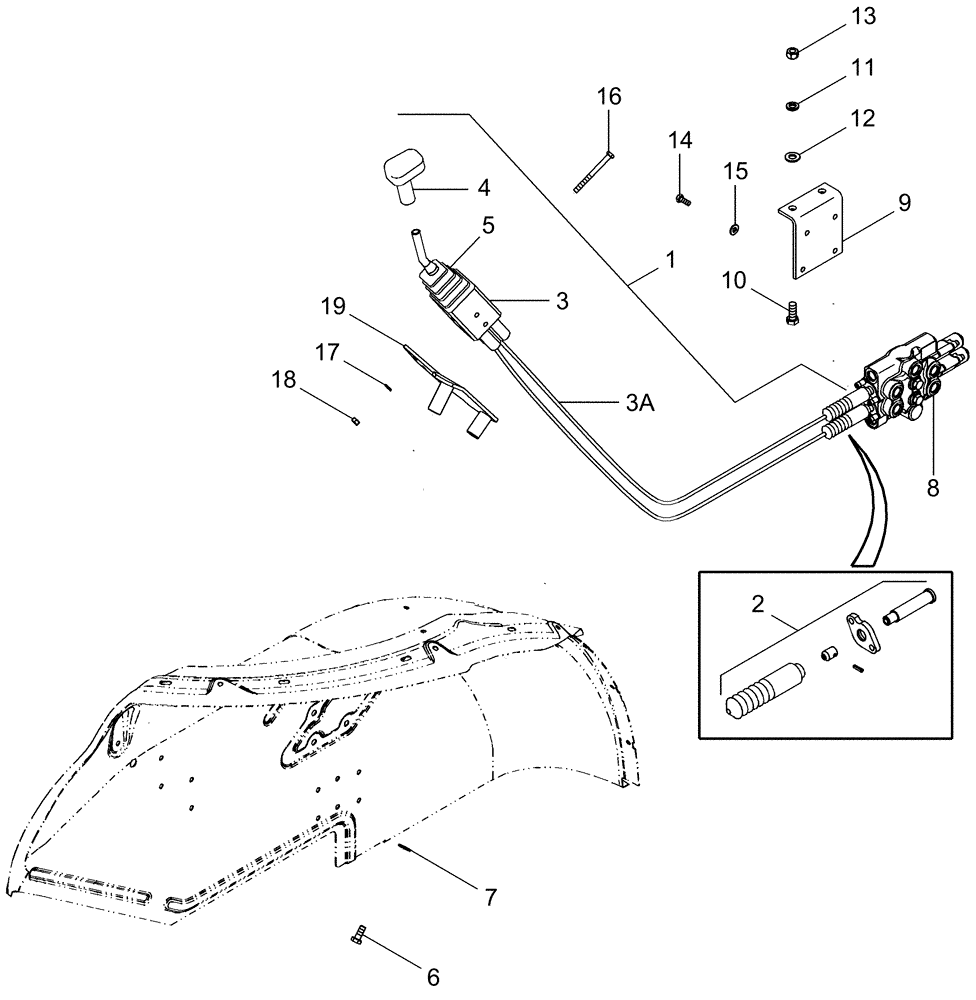

Запчасти Case IH LX132 (08-17) - HYDRAULIC CONTROLS - MOUNTING, JX TRACTOR (08) - HYDRAULICS

1

86984717

JOYSTICK

Inc. 2 - 5

1шт.

86984717R

REMAN-JOYSTICK

LX132 (7/02-6/05)

1шт.

86984717C

CORE-JOYSTICK

Return Number

1шт.

2

87415531

KIT

1шт.

3

87415533

JOYSTICK

Does Not Include Cables

1шт.

3a

NSS

NOT SOLD SEPARAT

Cable

2шт.

4

87415532

HANDLE GRIP

1шт.

5

5199869

BOOT

1шт.

6

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

8

REF

INSTRUCTION

Valve Assembly, Loader

1шт.

9

86984162

PLATE

Valve Mounting

1шт.

10

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

12

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

2шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

15

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

5шт.

16

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

M8 x 90; 8.8

2шт.

17

892-11008

LOCK WASHER,8mm ID

2шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

19

87414559

BRACKET

1шт.
