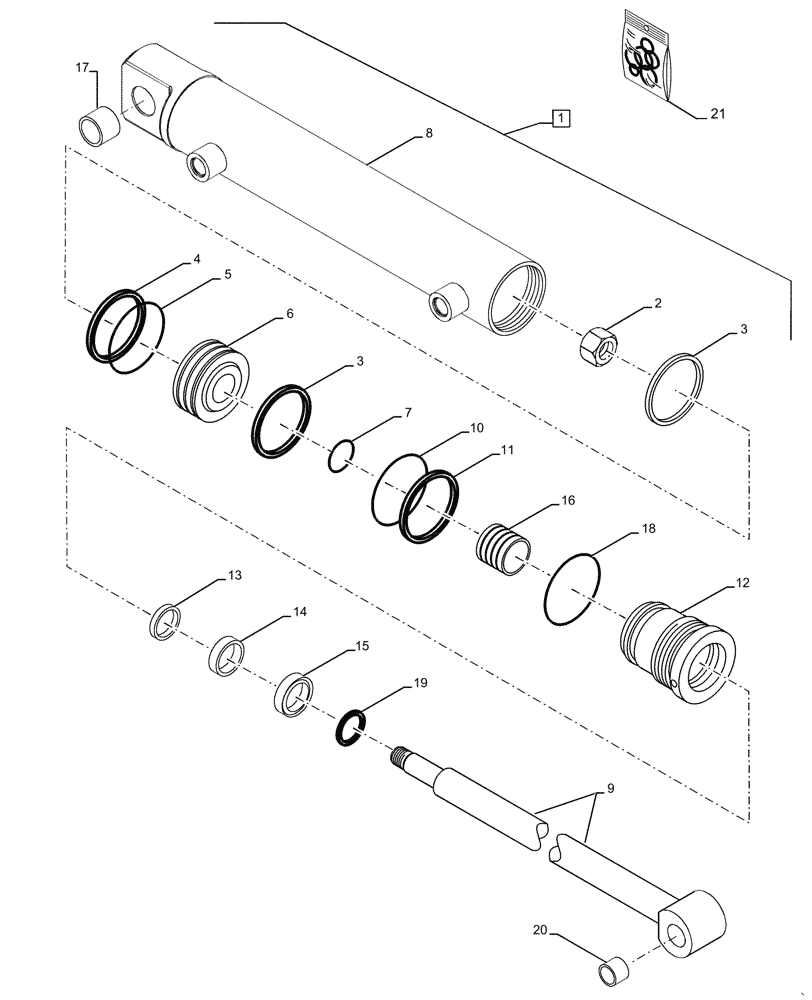

Запчасти Case IH LX132 (08-11) - CYLINDER ASSEMBLY - BUCKET - WITHOUT SELF-LEVEL - 450332A1 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
450332A1
CYLINDER ASSY.,Double Acting, 38.1mm Rod, 416.56mm Stroke
Bucket, Incl 2 - 20
1шт.
W/O Self - Leveling
1шт.
2
NSS
NOT SOLD SEPARAT
Lock Nut, Incl in 1
1шт.
3
NSS
NOT SOLD SEPARAT
Wear Ring, Incl in 1
2шт.
4
NSS
NOT SOLD SEPARAT
Seal, Incl in 1
1шт.
5
NSS
NOT SOLD SEPARAT
O - Ring, Incl in 1
1шт.
6
NSS
NOT SOLD SEPARAT
Hydraulic Piston, Incl in 1
1шт.
7
NSS
NOT SOLD SEPARAT
O - Ring, Incl in 1
1шт.
8
NSS
NOT SOLD SEPARAT
Hydraulic Cylinder Body, Incl in 1
1шт.
9
NSS
NOT SOLD SEPARAT
Rod, Incl in 1
1шт.
10
NSS
NOT SOLD SEPARAT
O - Ring, Incl in 1
1шт.
11
NSS
NOT SOLD SEPARAT
Backup Ring, Incl in 1
1шт.
12
NSS
NOT SOLD SEPARAT
Piston Head, Incl in 1
1шт.
13
NSS
NOT SOLD SEPARAT
Seal, Incl in 1
1шт.
14
NSS
NOT SOLD SEPARAT
Seal, Incl in 1
1шт.
15
NSS
NOT SOLD SEPARAT
Wiper, Incl in 1
1шт.
16
NSS
NOT SOLD SEPARAT
Wear Ring, Incl in 1
1шт.
17
NSS
NOT SOLD SEPARAT
Hydraulic Cylinder Bushing, Incl in 1
2шт.
18
NSS
NOT SOLD SEPARAT
O - Ring, Incl in 1
1шт.
19
NSS
NOT SOLD SEPARAT
Shield, Incl in 1
1шт.
20
NSS
NOT SOLD SEPARAT
Piston Head Bushing, Incl in 1
2шт.
21
352545A1
SEAL KIT
Hydraulic Cylinder, Contains 6 Seals, 6 Rings
1шт.
