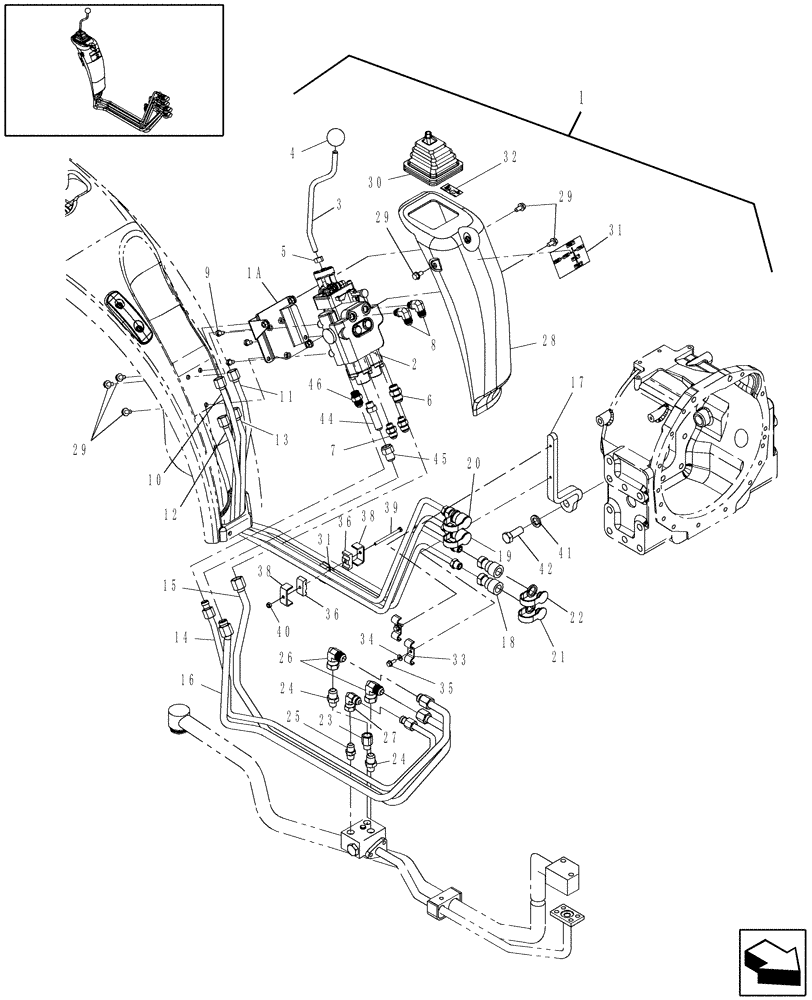

Запчасти Case IH LX118 (004[1]) - 2 FUNCTION MID-MOUNT REMOTE HYDRAULIC CONTROL VALVE W/JOYSTICK CONTROL - 710440046

1

86404401

BRACKET

Mid-Mount Hydraulic Control Valve Kit

1шт.

710440046

1шт.

2

86403581

HYDRAULIC VALVE

2- Spool Kit

1шт.

3

86404419

HANDLE

Loader Valve

1шт.

4

511632

KNOB

1шт.

5

425-117

NUT,7/16"-20, G5

1шт.

6

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Straight, Incl. Ref. 44

1шт.

7

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Straight, 3/4"-16 Flare x 9/16"-18 O-Ring, Includes: Ref. 45

2шт.

8

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Elbow, 90°, 3/4"-16 Flare x 9/16"-18 Adjustable O-Ring Boss, Includes: Ref. 45

2шт.

9

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Cap, HH, G5, 5/16"-18 x 1/2"

3шт.

10

86404405

TUBE,12.70 mm OD

Port A1

1шт.

11

86404407

TUBE,12.70 mm OD

Port A2

1шт.

12

86404409

TUBE,12.70 mm OD

Port B1

1шт.

13

86404411

TUBE,12.70 mm OD

Port B2

1шт.

14

87300892

HYD TUBE,12.70 mm OD

Tank

1шт.

15

86404415

TUBE,15.88 mm OD

Pressure

1шт.

16

87300891

HYD TUBE,15.88 mm OD

Power Beyond

1шт.

17

86402201

BRACKET

Tube Mount

1шт.

18

9846343

COUPLING,3/8" NPTF

Hyd, O-Ring used is 238-5017 & Back-Up Ring used is 647327

4шт.

19

86597755

PLUG,29mm OD x 246mm L

Dust, Blue

1шт.

20

86597754

PLUG,29mm OD x 246mm L

Dust, Red

1шт.

21

86597758

PLUG,29mm OD x 246mm L

Dust, Yellow

1шт.

22

86597757

PLUG,29mm OD x 246mm L

Dust, Green

1шт.

23

86636626

ADAPTER,3/8"-18 Male NPTF x 3/8"-18 Female NPTF

Hyd Pipe 3/8-18M

1шт.

24

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

2шт.

25

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

1шт.

26

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

-8 90°, 7/8"-14 Swivel

2шт.

27

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

28

86404403

PROTECTIVE COVER

Loader Control

1шт.

29

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

6шт.

30

86530982

BOOT

Loader Joystick

1шт.

31

86401095

DECAL

Loader Valve

1шт.

32

86401119

DECAL

Valve Lock

1шт.

33

86524859

CLAMP

Tube

2шт.

34

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

35

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

2шт.

36

430357

CLAMP

4шт.

37

434097

SUPPORT

1шт.

38

431941

SUPPORT

2шт.

39

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

1шт.

40

832-46406

NUT,M6 x 1, Cl 8

1шт.

41

892-11018

LOCK WASHER,M18

M18

2шт.

42

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

2шт.

44

9601710

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, Pipe

1шт.

45

87039394

REDUCER,37 Degree, 3/4"-16, Fem x 7/8"-14 Male

Adapter

1шт.

46

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.
