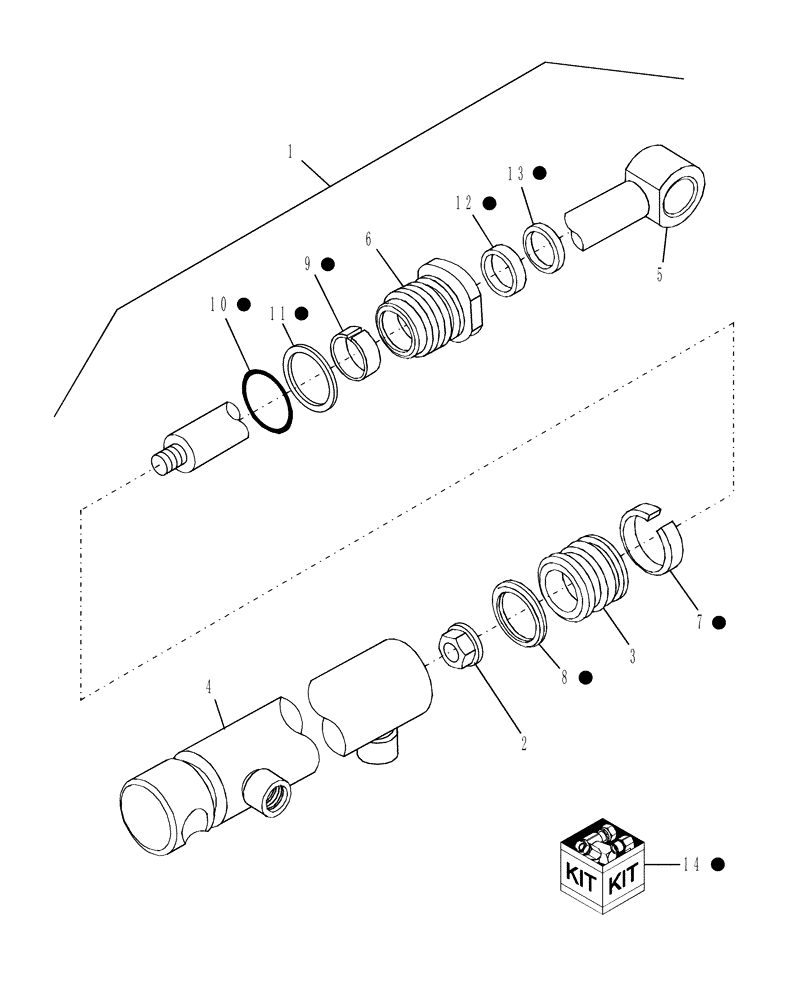

Запчасти Case IH LX118 (003[5]) - BUCKET CYLINDER, USED AFTER 10/07/2003, HEAD W/ FLATS

1

87037845

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 484mm Stroke

Bucket

2шт.

Manufacturer's Production Date Stamp Located Middle of Cylinder Tube.Stamp Includes Date Code ( week / year ).

1шт.

2

280724

LOCK NUT,3/4" - 16

1шт.

3

87038286

PISTON ASSY

1шт.

4

87038281

BODY

1шт.

5

87038282

ROD

1шт.

6

87038291

HEAD ASSY.

1шт.

7

NSS

NOT SOLD SEPARAT

Wear Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Sealing Washer

1шт.

11

NSS

NOT SOLD SEPARAT

Backup Washer

1шт.

12

NSS

NOT SOLD SEPARAT

Seal, O-Ring

1шт.

13

NSS

NOT SOLD SEPARAT

Seal

1шт.

14

87038279

SEAL KIT

1шт.
