(003[4]) - BUCKET CYLINDER, USED PRIOR TO 10/06/2003, SPANNER STYLE HEAD

Запчасти Case IH LX118 (003[4]) - BUCKET CYLINDER, USED PRIOR TO 10/06/2003, SPANNER STYLE HEAD

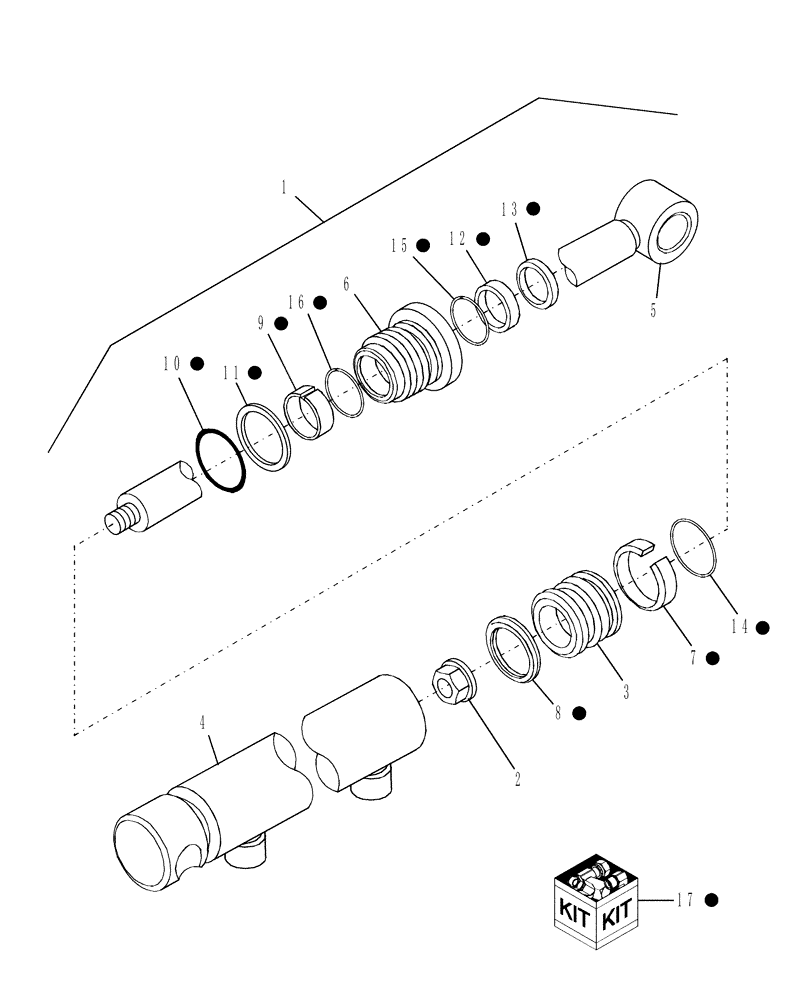

Схема запчастей Case IH LX118 - (003[4]) - BUCKET CYLINDER, USED PRIOR TO 10/06/2003, SPANNER STYLE HEAD
17
9
7
14
15
4
2
6
13
8
3
10
12
1
11
5
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87035652

CYLINDER,Double Acting, 31.75mm Rod, 484.12mm Stroke

Bucket

2шт.

Manufacturer's Production Date Stamp Located Near Base of Cylinder.Stamp Includes PN.87026740, Mfg. Logo & Date Code.

1шт.

2

231-41414

NUT,7/8"-9, GB

GB, 7/8"-14

1шт.

3

87038307

PISTON

1шт.

4

87038321

BARREL,2.75" DIA x 23.82" L

1шт.

5

87038323

ROD ASSY.

1шт.

6

87038322

GLAND

1шт.

7

NSS

NOT SOLD SEPARAT

Wear Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

9

NSS

NOT SOLD SEPARAT

Wear Ring

2шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Backup Washer

1шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Oil Seal

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Lock Ring

1шт.

17

87040377

SEAL KIT

1шт.
