(003[3]) - LIFT CYLINDER, USED AFTER 10/07/2003, HEAD W/ FLATS

Запчасти Case IH LX118 (003[3]) - LIFT CYLINDER, USED AFTER 10/07/2003, HEAD W/ FLATS

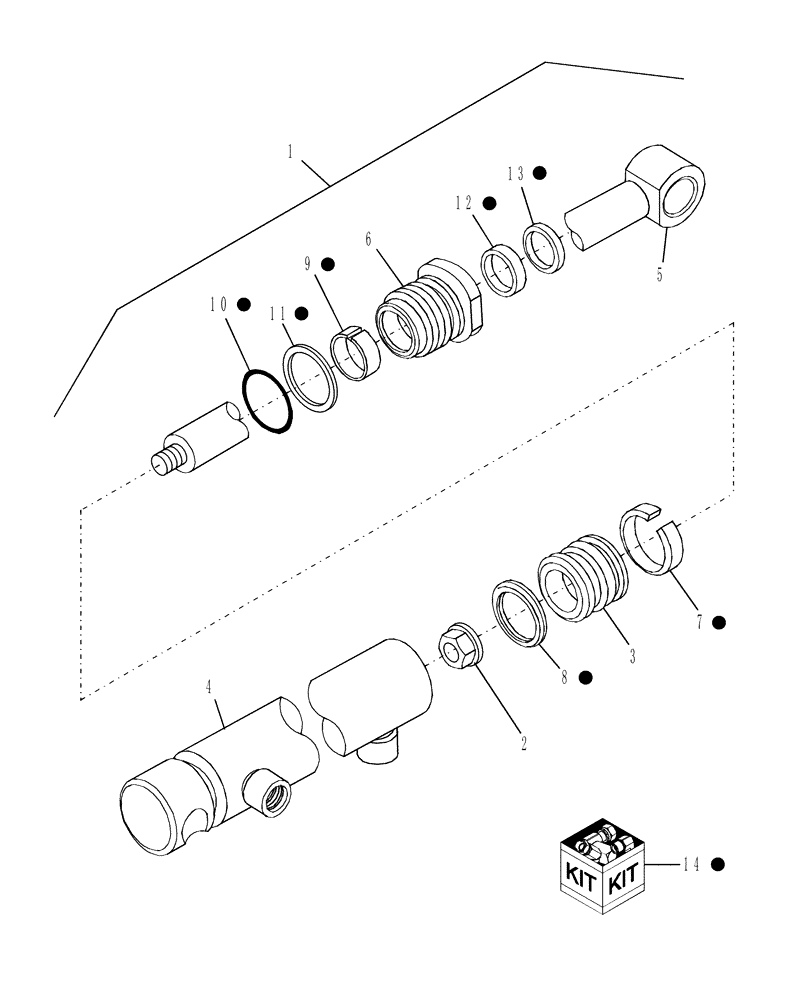

Схема запчастей Case IH LX118 - (003[3]) - LIFT CYLINDER, USED AFTER 10/07/2003, HEAD W/ FLATS
10
13
3
14
9
4
8
1
6
11
5
7
12
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87037844

CYLINDER ASSY.,Double Acting, 34.92mm Rod, 527mm Stroke

Lift

2шт.

Manufacturer's Production Date Stamp Located Middle of Cylinder Tube.Stamp Includes Date Code ( week / year ).

1шт.

2

280724

LOCK NUT,3/4" - 16

1шт.

3

87038286

PISTON ASSY

1шт.

4

87038298

BODY

1шт.

5

87038299

ROD

1шт.

6

87038303

HEAD ASSY.

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

9

NSS

NOT SOLD SEPARAT

Wear Ring

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Sealing Washer

1шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Oil Seal

1шт.

14

87038297

SEAL KIT

1шт.
