(003[2]) - LIFT CYLINDER, USED PRIOR TO 10/06/2003, SPANNER TYPE HEAD

Запчасти Case IH LX118 (003[2]) - LIFT CYLINDER, USED PRIOR TO 10/06/2003, SPANNER TYPE HEAD

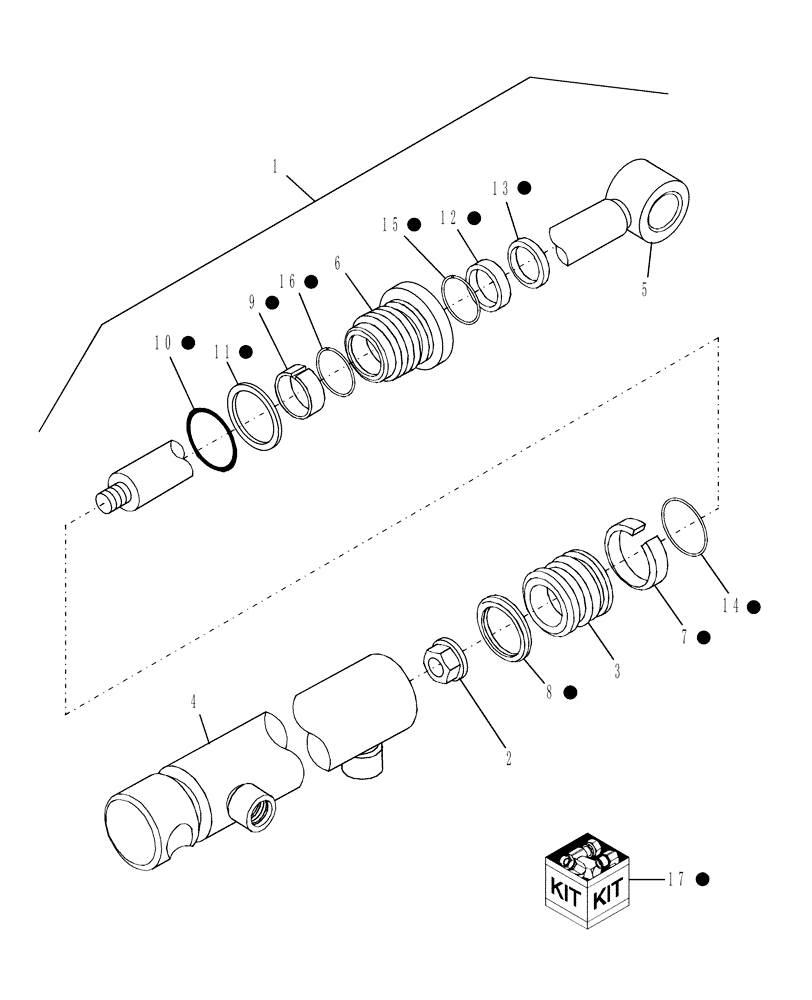

Схема запчастей Case IH LX118 - (003[2]) - LIFT CYLINDER, USED PRIOR TO 10/06/2003, SPANNER TYPE HEAD
17
4
7
11
15
3
1
16
8
13
6
10
12
14
5
9
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87035651

CYLINDER,Double Acting, 34.92mm Rod, 527.05mm Stroke

Lift

2шт.

Manufacturer's Production Date Stamp Located Near Base of Cylinder.Stamp Includes PN.87026736, Mfg. Logo & Date Code.

1шт.

2

231-41414

NUT,7/8"-9, GB

GB, 7/8"-14

1шт.

3

87038307

PISTON

1шт.

4

87038306

TUBE,2.63" DIA x 25.51" L

1шт.

5

87038309

ROD ASSY.

1шт.

6

87038308

GLAND

1шт.

7

NSS

NOT SOLD SEPARAT

Wear Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Piston Seal

1шт.

9

NSS

NOT SOLD SEPARAT

Wear Ring

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Backup Washer

1шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Oil Seal

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Lock Ring

1шт.

17

87040376

SEAL KIT

1шт.
