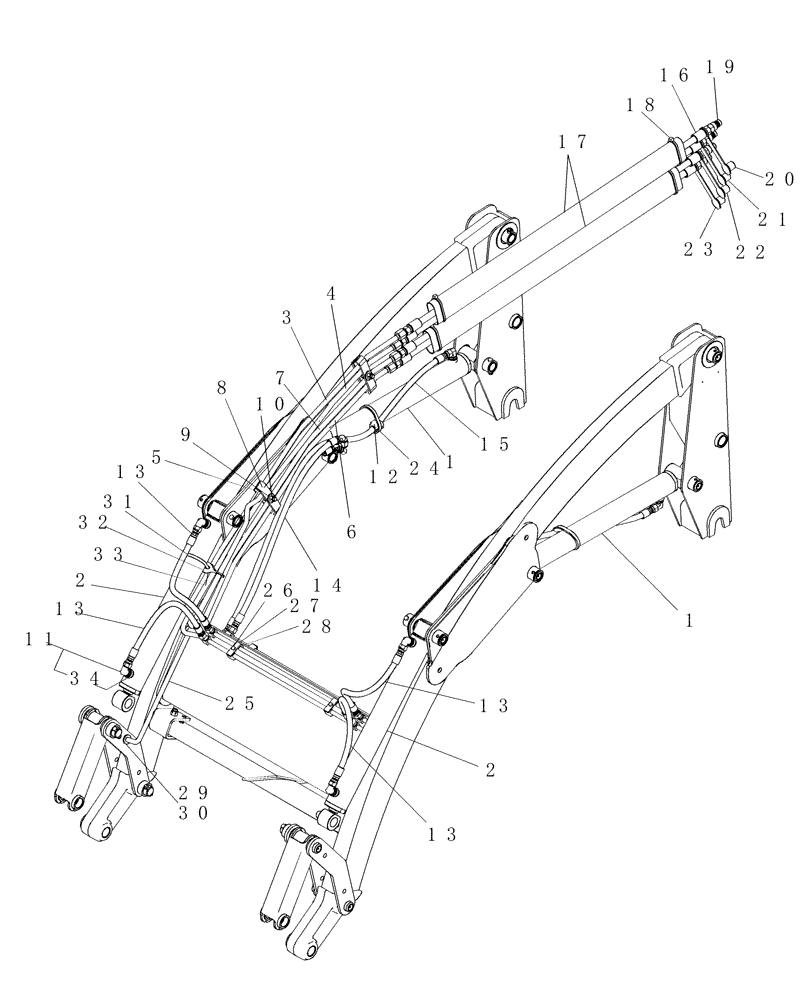

Запчасти Case IH LX118 (003[1]) - HYDRAULICS

1

87035651

CYLINDER,Double Acting, 34.92mm Rod, 527.05mm Stroke

Lift, Refer to Fig. 003-2, Years: -06-OCT-03

2шт.

1

87037844

CYLINDER ASSY.,Double Acting, 34.92mm Rod, 527mm Stroke

Lift, Refer to Fig. 003-3, Start Year: 07-OCT-03

2шт.

2

87035652

CYLINDER,Double Acting, 31.75mm Rod, 484.12mm Stroke

Bucket, Refer to Fig. 003-4, Years: -06-OCT-03

2шт.

2

87037845

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 484mm Stroke

Bucket, Refer to Fig. 003-5, Start Year: 07-OCT-03

2шт.

3

86567940

HYD TUBE

Upper

1шт.

4

86567941

HYD TUBE

Upper

1шт.

5

765394

PAD,19.8mm ID x 31.8mm W x 101.6mm L

2шт.

6

86591316

HYD TUBE

Lower

1шт.

7

86591315

HYD TUBE

Upper

1шт.

8

86571694

CLAMP

2шт.

9

495-21044

WASHER,3/8"

2шт.

10

232-4146

NUT,3/8"-16, GC

GB, 3/8"

2шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

8шт.

12

853965

SEAT CUSHION

Clamp

2шт.

13

86594269

HYDRAULIC HOSE,9.53mm ID x 438.15mm L, SAE 100R17

4шт.

14

86594267

HOSE

2шт.

15

86594268

HYDRAULIC HOSE,0.38" ID x 53.00", SAE 100R17

2шт.

16

86594270

HYDRAULIC HOSE,12.7mm ID x 1143mm L, SAE 100R17

4шт.

17

794839

PROTECTING COVER

2шт.

18

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

19

9846344

QUICK MALE COUPLING,3/8" NPTF

Hyd Nipple, 3/8

4шт.

20

86597750

DUST CAP,23mm OD x 255mm L

Red

1шт.

21

86597751

DUST CAP,23mm OD x 255mm L

Blue

1шт.

22

86597752

DUST CAP,23mm OD x 255mm L

Green

1шт.

23

86597753

DUST CAP,23mm OD x 255mm L

Yellow

1шт.

24

86625032

HOSE CLAMP,88.9mm ID - 65mm ID

2шт.

25

86597425

ROD

Bucket Level Indicator

1шт.

26

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

27

625822

CLAMP,1/2" Tube

1/2" Tube

4шт.

28

86509354

PLATE,9/32" ID x 3/4" W x 2" L

4шт.

29

495-21056

WASHER,1/2"

1шт.

30

394818

COTTER PIN,M5 x 25

1шт.

31

87033073

BOLT

U

1шт.

32

87033074

BRACKET

1шт.

33

232-4145

LOCK NUT,5/16"-18, GC

2шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8шт.
