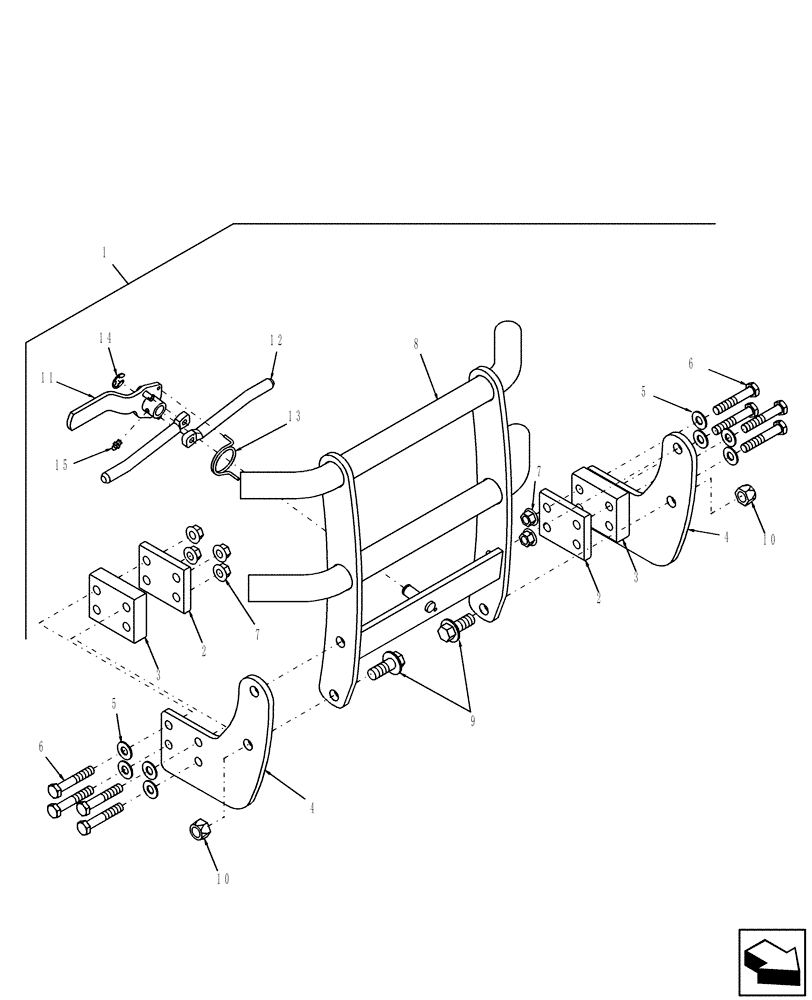

Запчасти Case IH LX118 (009) - GRILLE GUARD KIT - 719849086

1

W0

ORDER WHOLEGOODS

Kit, Grill Guard

1шт.

719849086

1шт.

2

86404942

BRACKET

Spacer Grill Guard Mounting, 3/8"

2шт.

3

86404935

BRACKET

Spacer Grill Guard Mounting, 1/2"

2шт.

4

86405265

PLATE

Grill Guard Mounting

2шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

6

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

8шт.

7

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

8шт.

8

86405012

GUARD

1шт.

9

811-16040

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 40mm, Cl 8.8

Cap, Flg Hd, CL 8.8, M16 x 2 x 40

2шт.

10

832-46416

NUT,M16 x 2, Cl 8

2шт.

11

86400478

HANDLE

1шт.

12

86400479

GUARD

2шт.

13

86558147

SPRING

1шт.

14

100-3362

SNAP RING,#62, .480" Dia, E-Type

1шт.

15

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.
