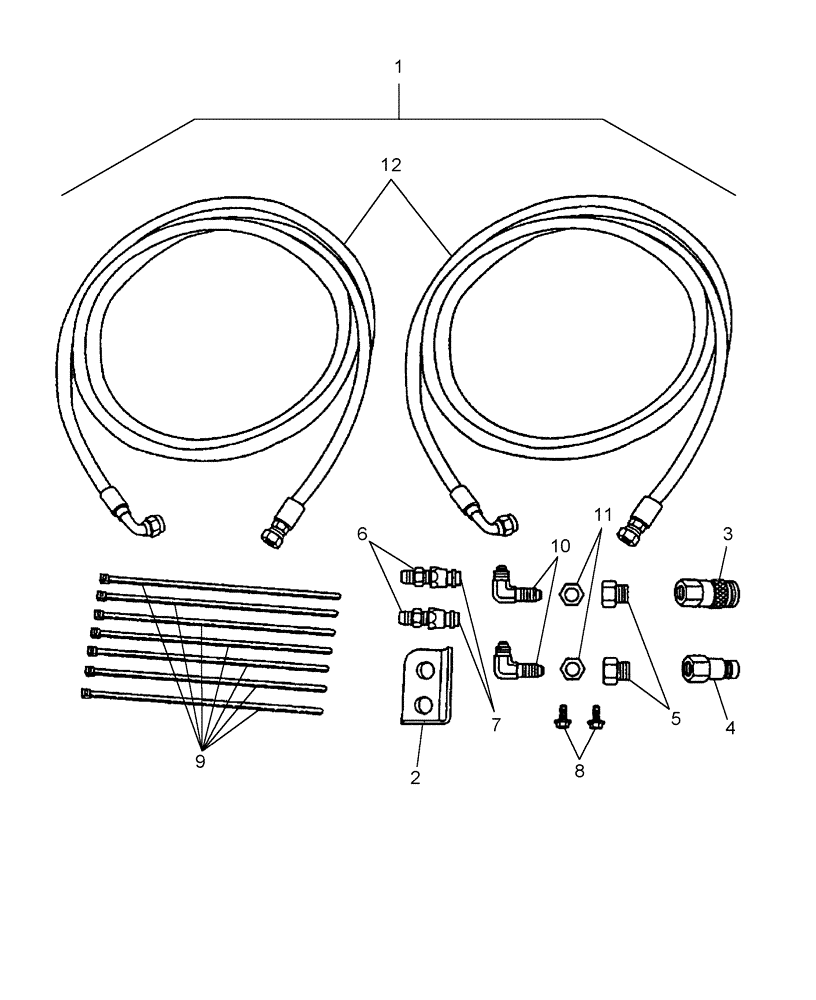

Запчасти Case IH LX118 (005) - THIRD FUNCTION REMOTE HOSE KIT

1

W0

ORDER WHOLEGOODS

3RD Function Remote Hose Kit

1шт.

716662016

1шт.

2

86603045

BRACKET

1шт.

3

86537659

COUPLING, QUICK, FEM

Disconnect Body, Female, 1.062 O-Ring

1шт.

4

86537658

QUICK MALE COUPLING

Disconnect Body, Male, 1.062 O-Ring

1шт.

5

86537648

ADAPTER

Connector

2шт.

6

132341

HYD CONNECTOR,3/4" - 16 JIC x 1/2" - 14 NPT

2шт.

7

9801618

QUICK MALE COUPLING,1/2" - 14

Nipple

2шт.

8

570821

SELF-TAP SCREW,Hex Flng, 5/16" - 18 x 5/8"

Flg, USR, 5/16"-18 x 5/8"

2шт.

9

529070

CABLE TIE,368.3mm L

CABLE STRAP

7шт.

10

86513091

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

Bulkhead, 90E-10 37

2шт.

11

595460

BHD LOCK NUT,7/8" - 14

Bulkhead, .875

2шт.

12

87311349

FLEXIBLE HOSE

1/2" x 250"

2шт.
