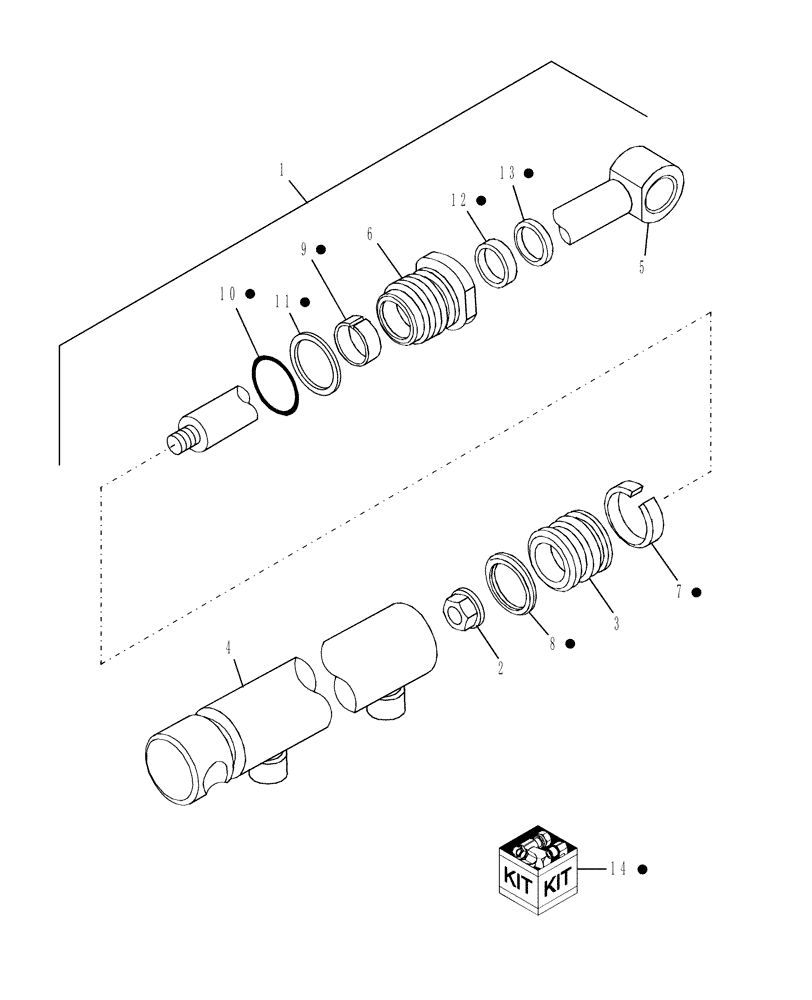

Запчасти Case IH LX116 (005) - BUCKET CYLINDER

1

NLS

NO LONGER SERVICED

Cylinder, Bucket,(86602781) Includes: Ref. 2-13

2шт.

Replaced by 86618853 Bucket Cylinder, Refer to Fig. 005A for Detail

1шт.

Manufacturer's Production Date Stamp Located Near Base of Cylinder. Stamp Includes PN 87028569, Mfg. Logo & Date Code.

1шт.

2

280724

LOCK NUT,3/4" - 16

1шт.

3

80592950

PISTON

1шт.

4

86580642

CYLINDER,50.8mm Bore Dia

1шт.

5

86580770

CYLINDER END CAP

1шт.

6

771705

RING

Wear, 2.004" ID x .50" Thk

1шт.

7

86553483

SEAL

Piston, 3 Piece

1шт.

8

9843627

WEAR RING,Split, 31.75mm ID x 34.8mm OD x 12.7mm Thk

1.250" ID x .50" Thick

1шт.

9

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

10

86565440

SEALING WASHER

Back Up

1шт.

11

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

1шт.

12

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

1шт.

13

86586336

SEAL KIT

1шт.
