(005[A]) - BUCKET CYLINDER - OGNIBENE

Запчасти Case IH LX116 (005[A]) - BUCKET CYLINDER - OGNIBENE

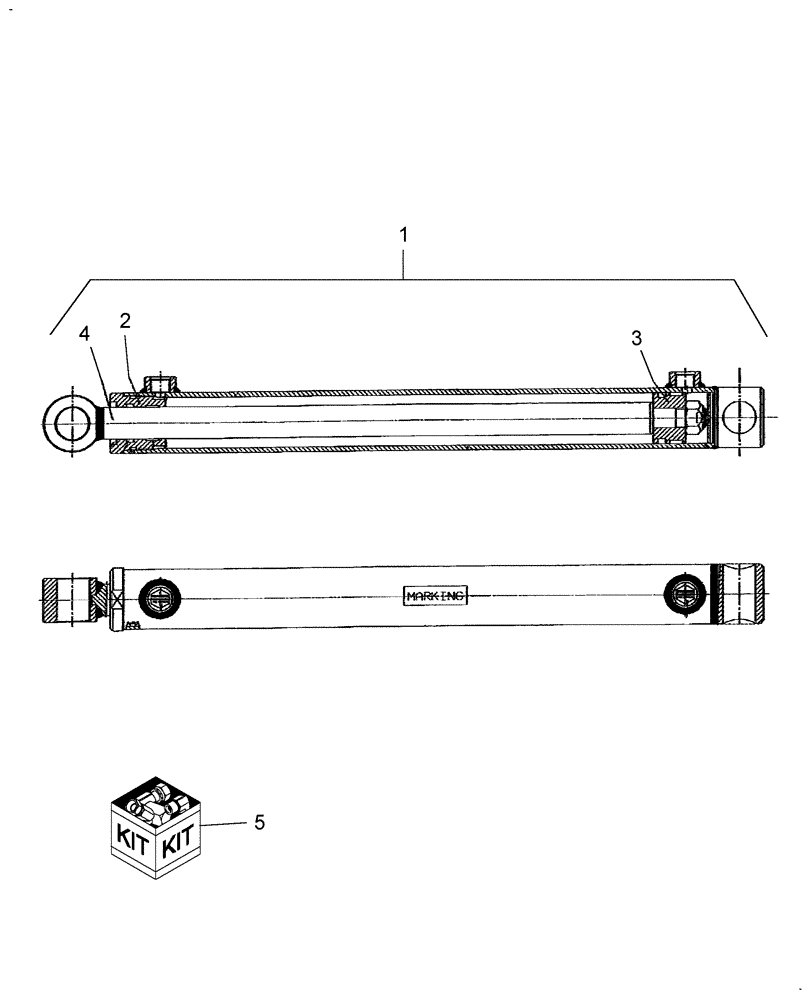

Схема запчастей Case IH LX116 - (005[A]) - BUCKET CYLINDER - OGNIBENE
2
5
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86618853

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 484mm Stroke

Bucket, Includes: Ref. 2-5

2шт.

Manufacturer's Production Date Stamp Located Middle of Cylinder Tube. Stamp Includes: Date Code (week/year).

1шт.

2

87038282

ROD

Rod

1шт.

3

87311861

PISTON

Piston

1шт.

4

87311858

HEAD

Head

1шт.

5

87311856

SEAL KIT

Kit, Seal

1шт.

Выбрано товаров: 6
