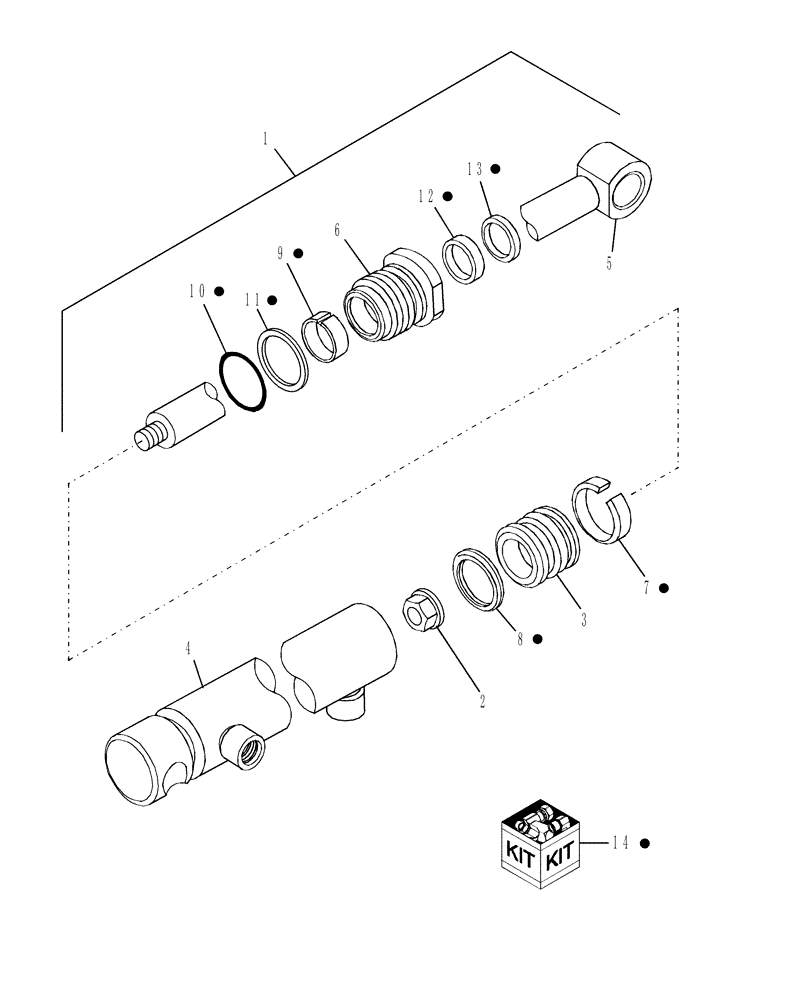

Запчасти Case IH LX116 (004) - LIFT CYLINDER

1

NLS

NO LONGER SERVICED

Cylinder, Lift (86602782) Includes: Ref. 2-14

2шт.

Replaced by 86608115 Lift Cylinder, Refer to Fig. 005A for Detail

1шт.

Manufacturer's Production Date Stamp Located Near Base of Cylinder. Stamp Includes PN 8703476, Mfg. Logo & Date Code.

1шт.

2

280724

LOCK NUT,3/4" - 16

1шт.

3

80592950

PISTON

1шт.

4

86564976

CYLINDER,50.8mm Bore Dia

1шт.

5

86564978

ROD

Piston

1шт.

6

86564980

CYLINDER HEAD

1шт.

7

771705

RING

2.004" ID x .50" Thk

1шт.

8

86553483

SEAL

Piston, 3 Piece

1шт.

9

86571906

WEAR RING

Wear

1шт.

10

272380

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

11

86565440

SEALING WASHER

Back Up

1шт.

12

9600664

SEAL,35.05mm ID x 44.2mm OD x 7.37mm Thk

1шт.

13

46886

OIL SEAL,34.92mm ID x 44.76mm OD x 5.13mm Thk

Seal, Oil

1шт.

14

86564981

SEAL KIT

1шт.
