(004[A]) - LIFT CYLINDER - OGNIBENE

Запчасти Case IH LX116 (004[A]) - LIFT CYLINDER - OGNIBENE

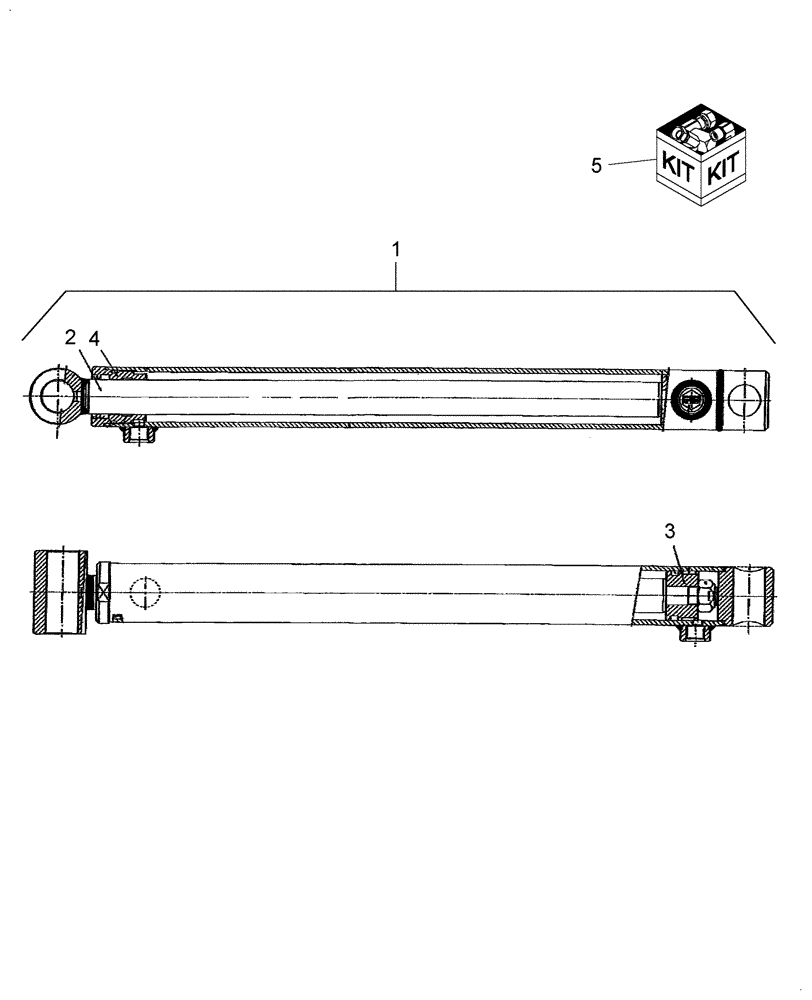

Схема запчастей Case IH LX116 - (004[A]) - LIFT CYLINDER - OGNIBENE
5
4
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86608115

LIFT CYLINDER

Lift, Includes: Ref. 2-5

2шт.

Manufacturer's Production Date Stamp Located Middle of Cylinder Tube. Stamp Includes Date Code (week/year).

1шт.

2

87311893

ROD

Rod

1шт.

3

87311859

HEAD

Head

1шт.

4

87311861

PISTON

1шт.

5

87311857

SEAL KIT

Kit, Seal

1шт.
