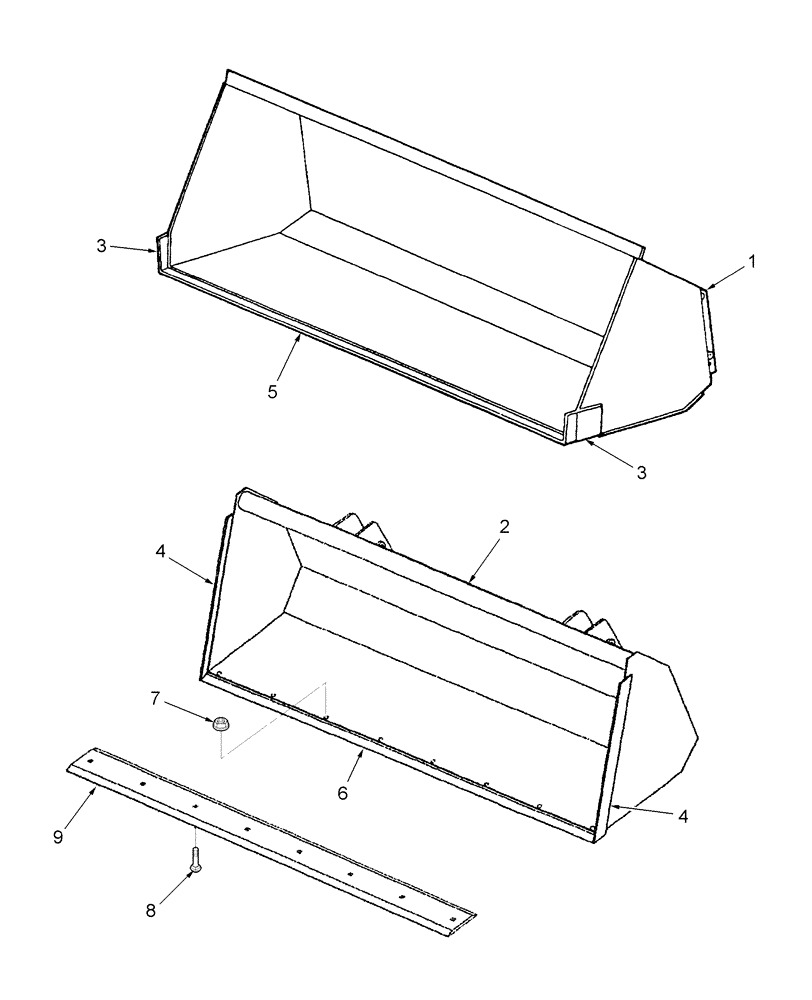

Запчасти Case IH LX116 (009) - BUCKETS

1

W0

ORDER WHOLEGOODS

Bucket, 60", Material, Pin-On

1шт.

715714056

1шт.

1

W0

ORDER WHOLEGOODS

Bucket, 72", Material, Pin-On

1шт.

715717046

1шт.

2

W0

ORDER WHOLEGOODS

Bucket, 60", HD Material, Pin-On

1шт.

715719036

1шт.

2

W0

ORDER WHOLEGOODS

Bucket, 60", Heavy Duty, Quick Attach

1шт.

715729036

1шт.

2

W0

ORDER WHOLEGOODS

Bucket, 72", HD Material, Pin-On

1шт.

715720046

1шт.

2

W0

ORDER WHOLEGOODS

Bucket, 72", Heavy Duty, Quick Attach

1шт.

715730036

1шт.

3

SML225419

CUTTING EDGE

Side, 60" & 72", Standard Pin-On

2шт.

4

SML44408

CUTTING EDGE

Side, 60" & 72", Heavy Duty Pin-On & Heavy Duty Quick Attach

2шт.

5

SML2254111

CUTTING EDGE

Bottom, 60", Standard (No Holes)

1шт.

5

SML2254120

CUTTING EDGE

Bottom, 72", Standard (No Holes)

1шт.

6

SML44465

CUTTING EDGE

Bottom, 60", Heavy Duty Pin-On & Quick Attach (with Holes)

1шт.

6

SML47751

CUTTING EDGE

Bottom, 72", Heavy Duty Pin-On & Quick Attach (with Holes)

1шт.

7

PL

PROCURE LOCALLY

Nut, 3/4"

1шт.

7

PL

PROCURE LOCALLY

Nut, Lock, 1/2"

1шт.

8

PL

PROCURE LOCALLY

Bolt, Plow, 3/4" x 2-1/4"

1шт.

8

PL

PROCURE LOCALLY

Bolt, Plow, 1/2" x 1-3/4"

1шт.

9

716426016

CUTTING EDGE

Edge, Cutting, Bolt-On 60"

1шт.

716426016

1шт.

9

716894026

CUTTING EDGE

Edge, Cutting, Bolt-On 72"

1шт.

716894026

1шт.

9

86621979

EDGE

Bolt-On 72", Requires: (8) 1/2" x 1-3/4" Plow Bolts & (8) 1/2" Locknuts

1шт.

10

86582385

DECAL

White, Alignment, 14"

2шт.

Not Illustrated

1шт.
