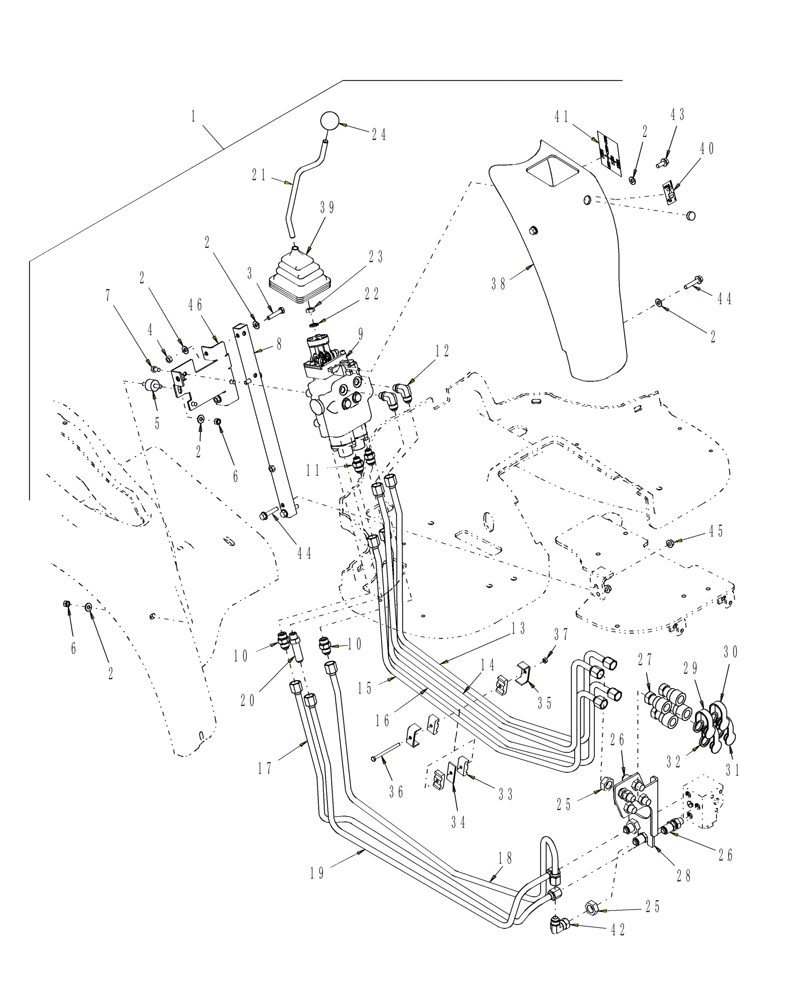

Запчасти Case IH LX114 (004) - MID-MOUNT HYDRAULIC CONTROL VALVE KIT

1

W0

ORDER WHOLEGOODS

Mid-Mount Hydraulic Control Valve Kit

1шт.

710440076

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

9шт.

3

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

4

825-1408

NUT,M8, Cl 8

2шт.

5

86522829

SILENTBLOC

1шт.

6

425-105

NUT,5/16"-18, G5

2шт.

7

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Cap, HH, G5, 5/16"-18 x 1/2"

3шт.

8

86405625

SUPPORT

1шт.

9

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Straight, 3/4"-16 Flare x 9/16"-18 O-Ring, Includes: O-Ring 237-6006

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

-8, Male, 3/4"-16, 37° Flare x 3/4"-16, O-Ring

2шт.

11

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Straight, 3/4"-16 Flare x 9/16"-18 O-Ring, Includes: O-Ring 237-6006

2шт.

12

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Elbow, 90°, 3/4"-16 Flare x 9/16"-18 Adjustable O-Ring Boss

2шт.

13

87300401

HYD TUBE

Port A2

1шт.

14

87300402

HYD TUBE

Port A1

1шт.

15

87300403

HYD TUBE

Port B1

1шт.

16

87300404

HYD TUBE

Port B2

1шт.

17

87300406

HYD TUBE

Tank

1шт.

18

87300407

HYD TUBE

Pressure

1шт.

19

87300602

HYD TUBE

Power Beyond

1шт.

20

218-5031

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adapter, Straight, 3/4"-16 Flare x O-Ring Boss

1шт.

21

86404419

HANDLE

Loader Valve

1шт.

22

492-11044

LOCK WASHER,7/16"

1шт.

23

218-1252

BHD LOCK NUT,Blkhd, 7/16"-20

Jam, G2, 7/16"-20

1шт.

24

511632

KNOB

1шт.

25

87313

JAM NUT,Jam, 3/4"-16, G2

6шт.

26

86532865

ADAPTER

Male Bulkhead, Uses 87313 Jam Nut

7шт.

27

9846343

COUPLING,3/8" NPTF

Hyd, O-Ring used is 238-5017 & Back-Up Ring used is 647327

4шт.

28

87300400

BRACKET

Valve Support

1шт.

29

86597755

PLUG,29mm OD x 246mm L

Dust, Blue

1шт.

30

86597758

PLUG,29mm OD x 246mm L

Dust, Yellow

1шт.

31

86597757

PLUG,29mm OD x 246mm L

Dust, Green

1шт.

32

86597754

PLUG,29mm OD x 246mm L

Dust, Red

1шт.

33

430357

CLAMP

4шт.

34

434097

SUPPORT

1шт.

35

431941

SUPPORT

2шт.

36

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

1шт.

37

825-1406

NUT,M6, Cl 8

1шт.

38

86404705

PROTECTION CAP

Loader Control

1шт.

39

86530982

BOOT

Loader Joystick

1шт.

40

86401119

DECAL

Valve Lock

1шт.

41

86401095

DECAL

Loader Valve

1шт.

42

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

-8

1шт.

43

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

44

844-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

3шт.

45

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

46

86404684

SUPPORT

Bracket, Valve

1шт.
