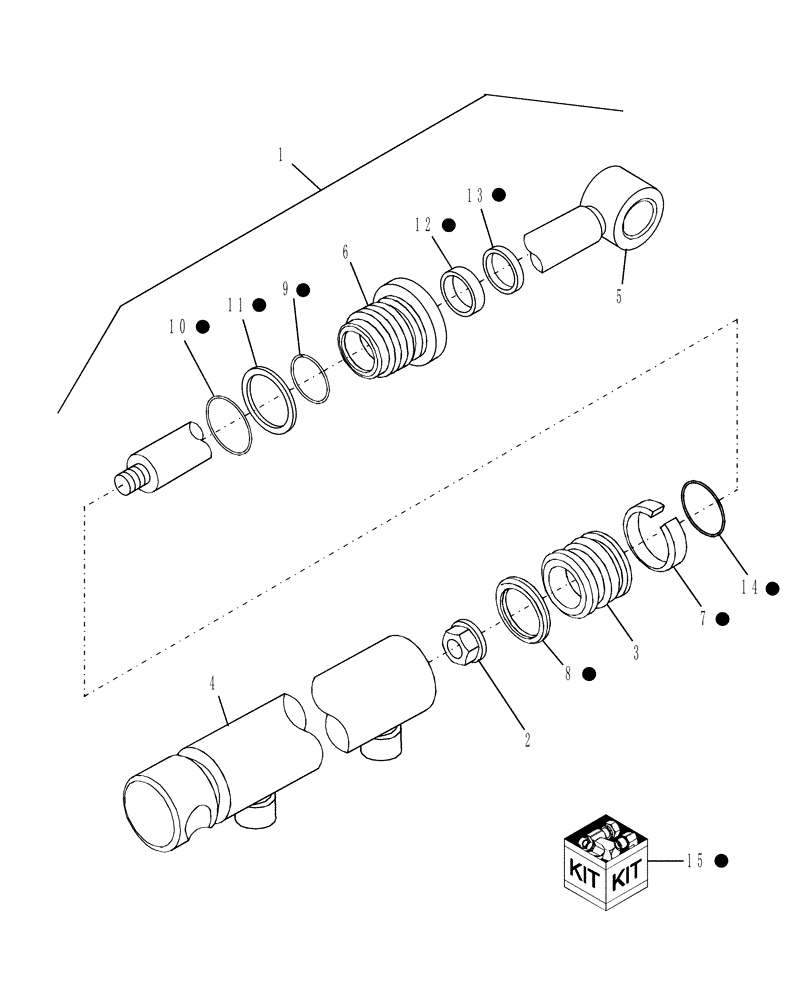

Запчасти Case IH LX114 (003[4]) - BUCKET CYLINDER, OLD STYLE (SPANNER HEAD)

1

87035568

CYLINDER

Bucket

2шт.

Manufacturer's Production Date Stamp Located Near Base of Cylinder.Stamp Includes PN.87028570, Mfg. Logo & Date Code.

1шт.

The Spanner Style Cylinder Components are No Longer Available. Replace with a Complete Cylinder 87038954

1шт.

2

280658

NUT,7/8"-9, GB

GC, 3/4"-16

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

87041077

1шт.

4

NSS

NOT SOLD SEPARAT

Tube

1шт.

87041076

1шт.

5

NSS

NOT SOLD SEPARAT

Rod

1шт.

87041079

1шт.

6

NSS

NOT SOLD SEPARAT

Head

1шт.

87041078

1шт.

7

NSS

NOT SOLD SEPARAT

Wear Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Piston Seal

1шт.

9

NSS

NOT SOLD SEPARAT

Lock Ring

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Back Up Washer

1шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Wiper Seal

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

15

NLS

NO LONGER SERVICED

Seal Kit

1шт.

87041080

1шт.
