(003[2]) - LIFT CYLINDER, OLD STYLE (SPANNER HEAD)

Запчасти Case IH LX114 (003[2]) - LIFT CYLINDER, OLD STYLE (SPANNER HEAD)

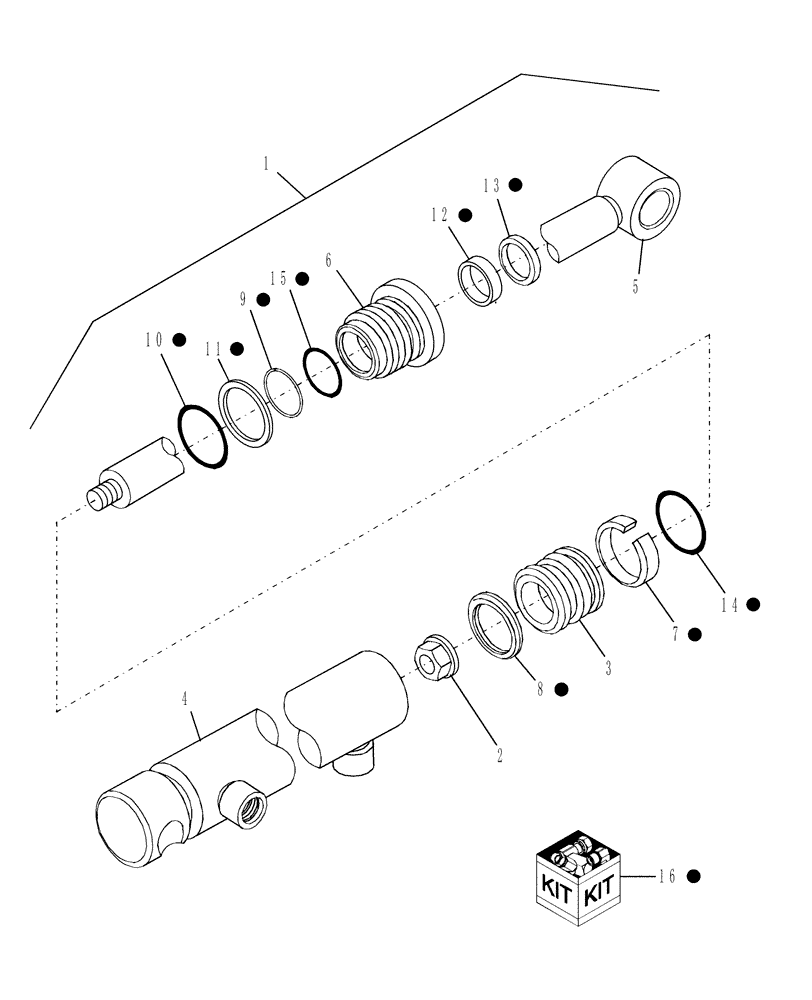

Схема запчастей Case IH LX114 - (003[2]) - LIFT CYLINDER, OLD STYLE (SPANNER HEAD)
2
8
16
14
9
3
13
1
7
15
6
4
5
12
11
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87035567

CYLINDER

Lift

2шт.

Manufacturer's Production Date Stamp Located Near Base of Cylinder.Stamp Includes PN.87034764, Mfg. Logo & Date Code.

1шт.

The Spanner Style Cylinder Components are No Longer Available. Replace with a Complete Cylinder 87038954

1шт.

2

280724

LOCK NUT,3/4" - 16

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

87041087

1шт.

4

NSS

NOT SOLD SEPARAT

Tube 87041086}

1шт.

5

NSS

NOT SOLD SEPARAT

Rod

1шт.

87041089

1шт.

6

NSS

NOT SOLD SEPARAT

Head

1шт.

87041083

1шт.

7

NSS

NOT SOLD SEPARAT

Wear Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Piston Seal

1шт.

9

NSS

NOT SOLD SEPARAT

Lock Ring

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Back-Up washer

1шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Wiper Sea

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

16

NLS

NO LONGER SERVICED

Seal Kit

1шт.

87041085

1шт.
