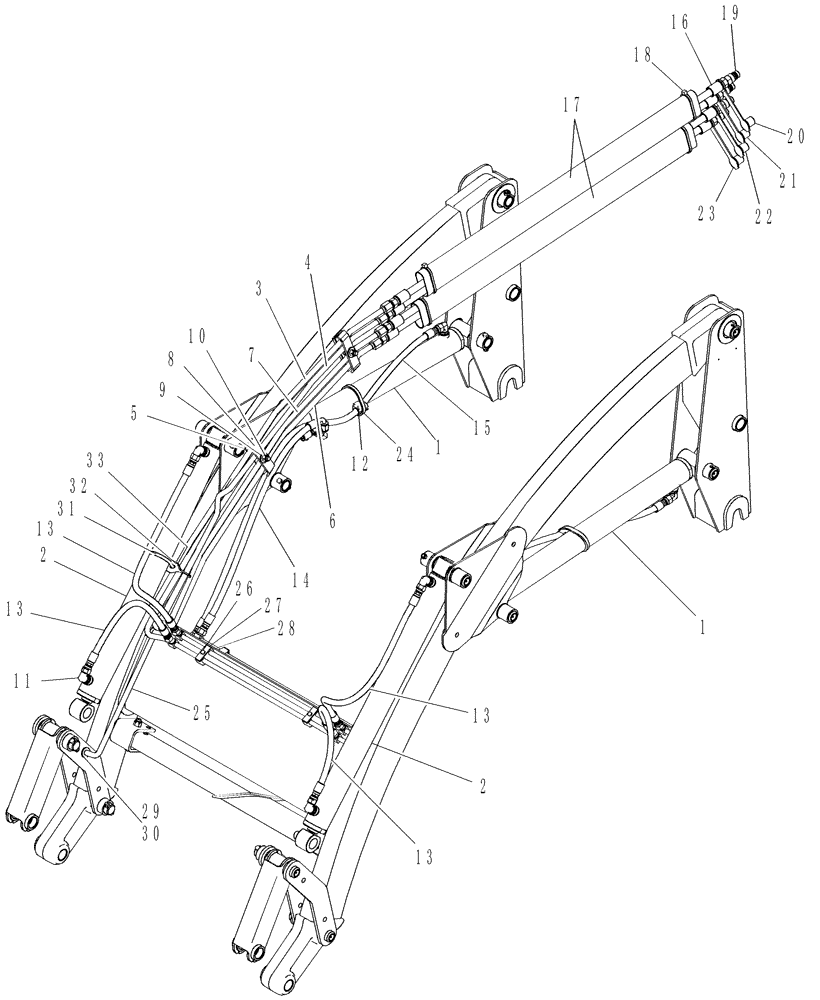

Запчасти Case IH LX114 (003[1]) - HYDRAULICS

1

87035567

CYLINDER

Lift Refer to Fig. 003-2

2шт.

The Spanner Style Cylinder Components are No Longer Available. Replace with a Complete Cylinder 87038954

1шт.

BSN

1шт.

1

87038953

CYLINDER,Double Acting, 34.92mm Rod, 464.3mm Stroke

Lift, Refer to Fig. 003-3

2шт.

ASN

1шт.

New Style (Head W/Flats)

1шт.

2

87035568

CYLINDER

Bucket Refer to Fig. 003-4

2шт.

The Spanner Style Cylinder Components are No Longer Available. Replace with a Complete Cylinder 87038954

1шт.

BSN

1шт.

2

87038954

CYLINDER,Double Acting, 28.57mm Rod, 484mm Stroke

Bucket, Refer to Fig. 003-5

2шт.

ASN

1шт.

New Style (Head W/Flats)

1шт.

3

87034760

HYD TUBE,0.50" OD

Upper

1шт.

4

87034761

HYD TUBE,0.50" OD

Upper

1шт.

5

765394

PAD,19.8mm ID x 31.8mm W x 101.6mm L

2шт.

6

87034759

HYD TUBE,0.50" OD

Lower

1шт.

7

87034758

TUBE,0.50" OD

Lower

1шт.

8

86571694

CLAMP

2шт.

9

495-21044

WASHER,3/8"

2шт.

10

232-4146

NUT,3/8"-16, GC

2шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

8шт.

12

853965

SEAT CUSHION

Clamp

2шт.

13

86594269

HYDRAULIC HOSE,9.53mm ID x 438.15mm L, SAE 100R17

17.25" Female Swivels on Both Ends

4шт.

14

87034762

HOSE

17.5" Female Swivels on Both Ends. One End also has a 90 Degree Elbow

2шт.

15

87034763

HOSE,0.38" ID x 40.50", SAE 100R17

Female Swivels on Both Ends.

2шт.

16

86594270

HYDRAULIC HOSE,12.7mm ID x 1143mm L, SAE 100R17

Male Rigid on Both Ends

4шт.

17

86580556

PROTECTING COVER

2шт.

18

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

19

9846344

QUICK MALE COUPLING,3/8" NPTF

Hyd Nipple, 3/8

4шт.

20

86597750

DUST CAP,23mm OD x 255mm L

Red

1шт.

21

86597751

DUST CAP,23mm OD x 255mm L

Blue

1шт.

22

86597752

DUST CAP,23mm OD x 255mm L

Green

1шт.

23

86597753

DUST CAP,23mm OD x 255mm L

Yellow

1шт.

24

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

2-1/16" - 3"

2шт.

25

86597425

ROD

Bucket Level Indicator

1шт.

26

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

27

625822

CLAMP,1/2" Tube

1/2" Tube

4шт.

28

86509354

PLATE,9/32" ID x 3/4" W x 2" L

4шт.

29

495-21056

WASHER,1/2"

1шт.

30

394818

COTTER PIN,M5 x 25

1шт.

31

86597407

U-BOLT

1шт.

32

86597302

BRACKET

1шт.

33

232-4145

LOCK NUT,5/16"-18, GC

2шт.
