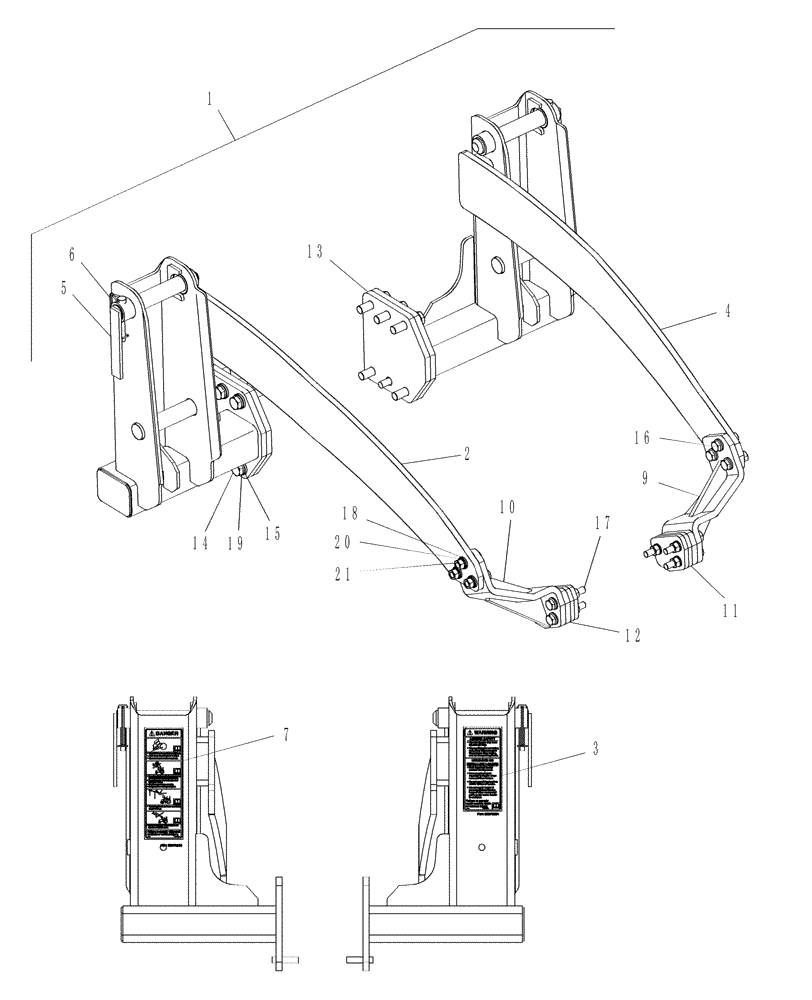

Запчасти Case IH LX114 (002[1]) - MOUNT KIT, TWO-PIECE - 715782076

1

W0

ORDER WHOLEGOODS

Mount Kit

1шт.

715782076

1шт.

2

87022967

SUPPORT ASSY.

Tower Mount, RH

1шт.

3

86979962

WARNING DECAL

Loader Safety

1шт.

4

87022968

SUPPORT ASSY.

Tower Mount, LH

1шт.

5

86579879

PIN

2шт.

6

86591354

LOCK PIN

2шт.

7

86979960

DANGER DECAL

Loader Safety

1шт.

9

87029534

MOUNTING PARTS

LH

1шт.

10

87029535

MOUNTING PARTS

RH

1шт.

11

87034543

SPACER

2шт.

12

87034544

SPACER

4шт.

13

87339314

PLATE ASSY.

Spacer, Rear

2шт.

14

355259

BOLT,Hex, M16 x 65, 8.8

10шт.

15

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

16

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

6шт.

17

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

6шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

18шт.

19

492-11062

BEARING WASHER,5/8"

10шт.

20

892-1112

LOCK WASHER,M12

12шт.

21

829-1412

NUT,M12, Cl 10.9

12шт.
