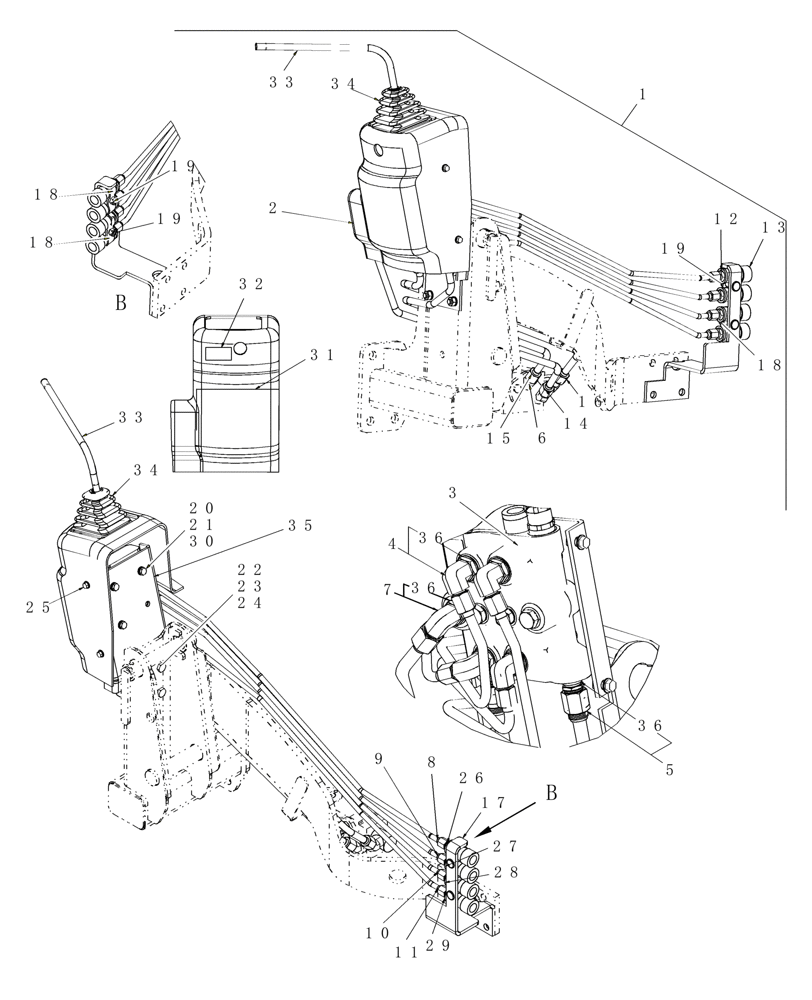

Запчасти Case IH LX112 (006) - MID-MOUNT HYDRAULIC CONTROL VALVE KIT (00) - COMPLETE MACHINE

1

W0

ORDER WHOLEGOODS

Mid-Mount Hydraulic Control Valve Kit 26Z-29A Plugs are not included in Kit

1шт.

715429026

1шт.

2

86982818

VALVE COVER

1шт.

3

86977548

CONTROL VALVE

1шт.

4

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

4шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

-8, Male, 3/4"-16, 37° Flare x 3/4"-16, O-Ring

2шт.

6

218-534

ELBOW,45 Degree, 3/4"-14, 37 Degree x 3/8"-18, NPTF

Elbow, 45°, 3/4"-16 Flare x 3/8' NPT

3шт.

7

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

8

87035915

HYD TUBE,0.375" OD

Port A1

1шт.

9

87035914

HYD TUBE,0.375" OD

Port A2

1шт.

10

87035913

HYD TUBE,0.375" OD

Port B1

1шт.

11

87035906

HYD TUBE,0.375" OD

Port B2

1шт.

12

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

4шт.

13

9846343

COUPLING,3/8" NPTF

O-Ring used is 238-5017 & Back-Up Ring used is 647327

4шт.

14

87035903

HYD TUBE,0.50" OD

Power Beyond

1шт.

15

87035904

HYD TUBE,0.50" OD

Pressure

1шт.

16

87035905

HYD TUBE,0.50" OD

Tank

1шт.

17

87301093

BRACKET

1шт.

18

86549922

CLAMP

2шт.

19

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

20

492-11031

LOCK WASHER,5/16"

3шт.

21

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

3шт.

22

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

23

892-11010

LOCK WASHER,M10

4шт.

24

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

25

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

3шт.

26

86581683

BAND

Red

1шт.

26a

86597755

PLUG,29mm OD x 246mm L

Dust Plug, Red

1шт.

Not Illustrated

1шт.

Not Included in 715429026 Kit

1шт.

27

86581682

BAND

Blue

1шт.

27a

86597754

PLUG,29mm OD x 246mm L

Dust Plug, Blue, Serial Range: -27a

1шт.

Not Illustrated

1шт.

Not Included in 715429026 Kit

1шт.

28

86581685

BAND

Green

1шт.

28a

86597757

PLUG,29mm OD x 246mm L

Dust Plug, Green, Serial Range: -28

1шт.

Not Illustrated

1шт.

Not Included in 715429026 Kit

1шт.

29

86581684

BAND

Yellow

1шт.

29a

86597758

PLUG,29mm OD x 246mm L

Dust Plug, Yellow, Serial Range: -2

1шт.

Not Illustrated

1шт.

Not Included in 715429026 Kit

1шт.

30

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

3шт.

31

87010594

DECAL

Valve Lock

1шт.

32

86401119

DECAL

Valve Lock

1шт.

33

87018517

HANDLE

Refer to Fig. 007.

1шт.

Not Included in Remote Kit

1шт.

34

87018526

BOOT

Refer to Fig. 007.

1шт.

Not Included in Remote Kit

1шт.

35

86982820

BRACKET

1шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

7шт.
