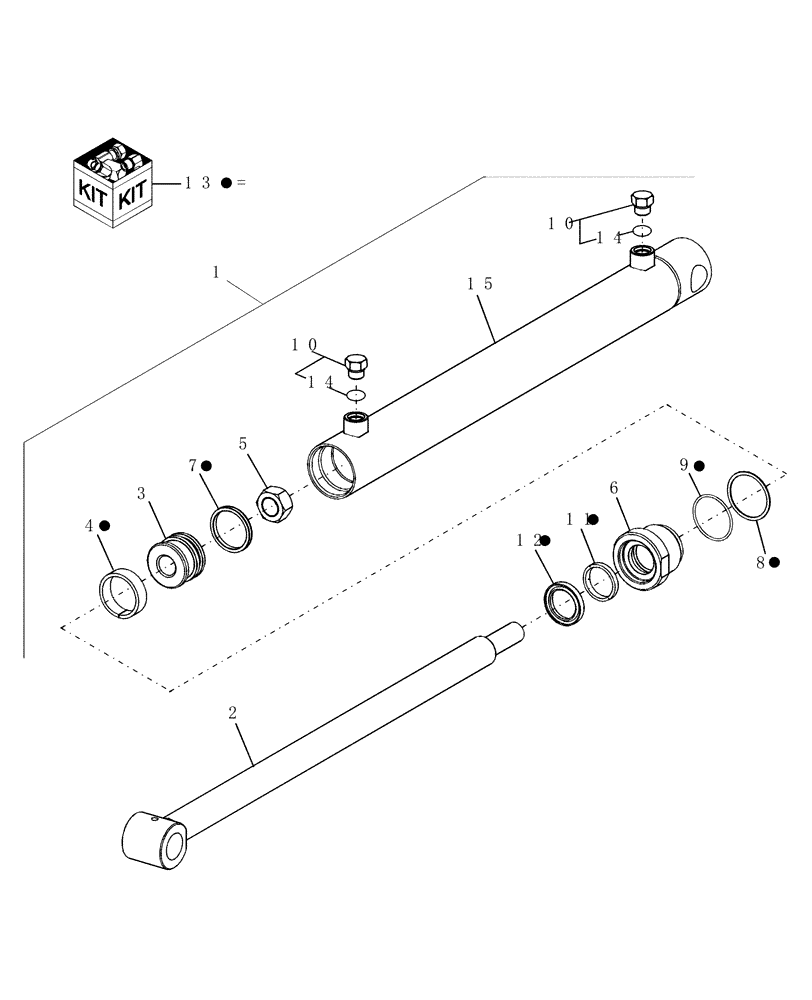

Запчасти Case IH LX112 (004) - LIFT CYLINDER (00) - COMPLETE MACHINE

1

86643071

CYLINDER ASSY.

Cylinder, Lift

1шт.

2

86643075

PISTON ROD

1шт.

3

9620241

PISTON

1шт.

4

9600658

RING

Wear

1шт.

5

280724

LOCK NUT,3/4" - 16

1шт.

6

86643079

CYLINDER HEAD

1шт.

7

86632516

SEAL

1шт.

8

86631257

BACK-UP RING

1шт.

9

238-5223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 5, 75 Duro

1шт.

10

76349

PLUG,9/16" - 18 ORB

2шт.

11

80592790

SEAL,28.7mm ID x 34.8mm OD x 6.35mm Thk

1-1/8" ID x 1-3/8" OD

1шт.

12

128406

SEAL,28.57mm ID x 41.45mm OD x 6.35mm Thk

Rod Wiper

1шт.

13

86643080

SEAL KIT

1шт.

15

NSS

NOT SOLD SEPARAT

Cylinder Barrel

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
