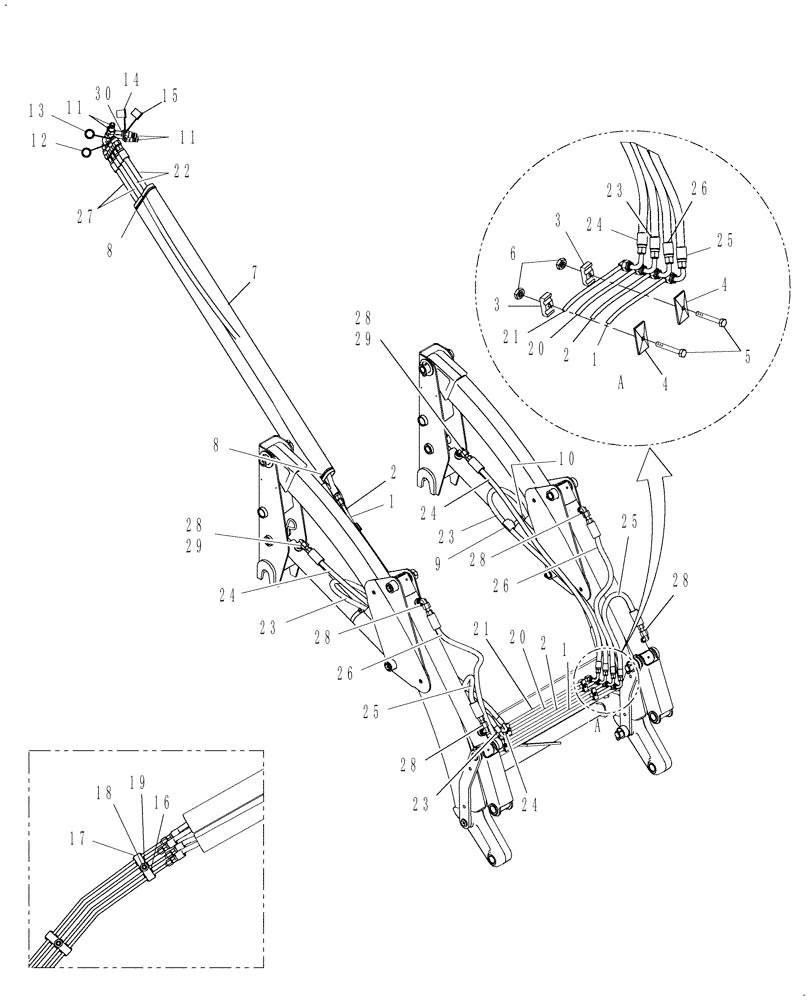

Запчасти Case IH LX112 (003) - HYDRAULICS (00) - COMPLETE MACHINE

1

86977488

HYD TUBE,0.375" OD

Upper, Outer

1шт.

2

86977489

HYD TUBE,0.375" OD

Upper, Inner

1шт.

3

86979293

CLAMP

4шт.

4

86979291

LOCKING TAB

4шт.

5

86979322

SELF-TAP SCREW,Hex Flg Hd, M6 x 35

Tapping, Flg. Hd., M6 x 1.00 x 35

4шт.

6

86603118

PUSH-ON NUT,1/2” OD x 5/64” Thk

Push

4шт.

7

86979335

SLEEVE

Protective

2шт.

8

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

7шт.

9

86836944

CLAMP

Cushion

2шт.

10

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

2шт.

11

9846344

QUICK MALE COUPLING,3/8" NPTF

4шт.

12

86597751

DUST CAP,23mm OD x 255mm L

Blue

1шт.

13

86597750

DUST CAP,23mm OD x 255mm L

Red

1шт.

14

86597752

DUST CAP,23mm OD x 255mm L

Green

1шт.

15

86597753

DUST CAP,23mm OD x 255mm L

Yellow

1шт.

16

86836943

PAD

2шт.

17

86836945

CLAMP

2шт.

18

495-21044

WASHER,3/8"

2шт.

19

232-4146

NUT,3/8"-16, GC

2шт.

20

86977486

HYD TUBE,0.375" OD

Lower, Outer

1шт.

21

86977487

HYD TUBE,0.375" OD

Lower, Inner

1шт.

22

87035899

HOSE,9.50 mm ID x 1600 mm, SAE 100R17 CLASS 25 TYPE 1

2шт.

23

86836950

HYDRAULIC HOSE,9.53mm ID x 1160mm L, SAE 100R17

2шт.

24

86836949

HYDRAULIC HOSE,9.50 mm ID x 950.00 mm, SAE 100R17 Class 25 Type 1

2шт.

25

86836948

HYDRAULIC HOSE,9.50 mm ID x 495.00 mm, SAE 100R17 Class 25 Type 1

2шт.

26

86836947

HYDRAULIC HOSE,9.50 mm ID x 676.00 mm, SAE 100R17 Class 25 Type 1

2шт.

27

87035900

HOSE

2шт.

28

87041924

FITTING

90°, Male 37° Fl. - Male, Includes: O-Ring, Use with Ref. 29

6шт.

Refer to Program #A1904 for Affected Units

1шт.

28

87041924

FITTING

90°, Male 37° Fl. - Male, Includes: O-Ring

8шт.

Refer to Program #A1904 for Affected Units

1шт.

29

87307951

FITTING

90°, #6 JIC, 9/16"-18 x #6 ORBA, 9/16"-18, Low Profile, Includes: O-Ring

2шт.

Refer to Program #A1904 for Affected Units

1шт.

30

218-1095

ELBOW,45 Degree, 9/16-18" 37 Degree x 3/8"-18, NPTF

45°, 9/16"-18 Flare x 3/8" NPT

4шт.
