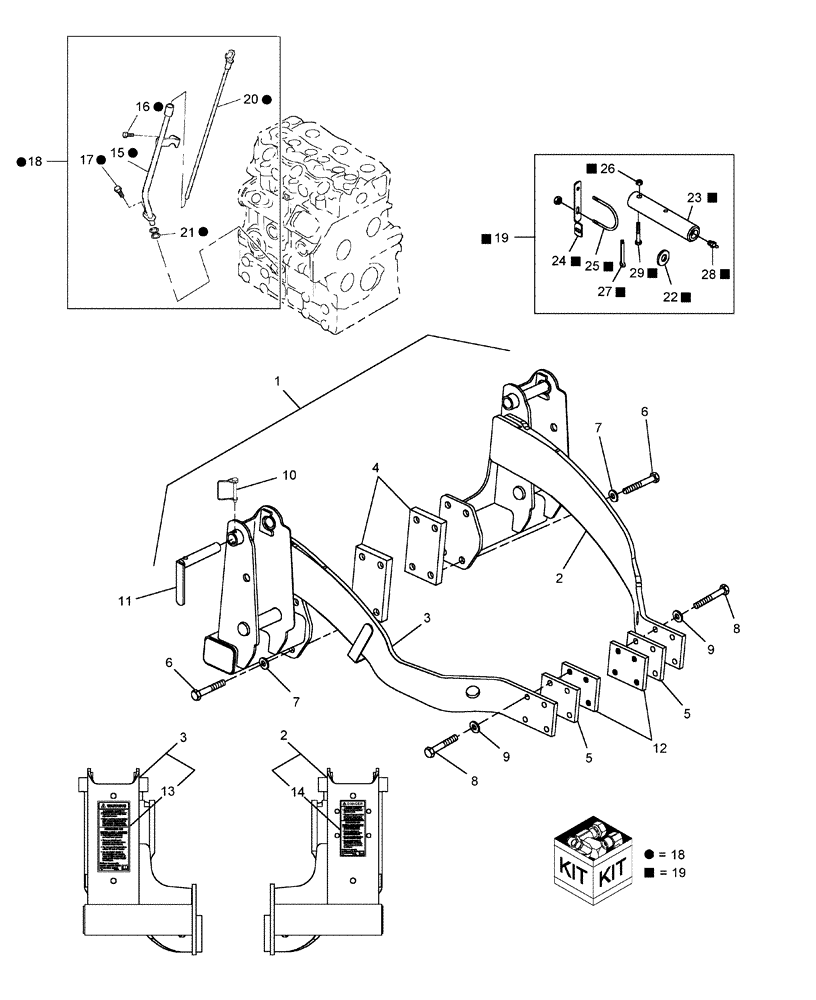

Запчасти Case IH LX112 (002) - MOUNT KIT (00) - COMPLETE MACHINE

1

W0

ORDER WHOLEGOODS

Mount Kit

1шт.

715782096

1шт.

2

87040426

BRACKET

RH Mount

1шт.

3

87040425

BRACKET

LH Mount

1шт.

4

86982746

PLATE

Rear

2шт.

5

86982745

PLATE

Front

2шт.

6

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

8шт.

7

492-11062

BEARING WASHER,5/8"

8шт.

8

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

9

892-1112

LOCK WASHER,M12

8шт.

10

86986689

PIN ASSY.

2шт.

11

86837801

PIN,7.93mm OD x 44.45mm L

Lock

2шт.

12

87301363

PLATE

Threaded

2шт.

13

86979962

WARNING DECAL

WARNING, Loader

1шт.

14

86589568

DANGER DECAL

DANGER, Loader

1шт.

15

SBA110756201

GUIDE

Dipstick

1шт.

16

SBA011510812

CAPTIVE WASHER SCREW,Hex, M8 x 12, G5

1шт.

17

SBA011510816

BOLT

M8 x 16

1шт.

18

87024506

KIT

Oil Level Gage

1шт.

19

87033075

PROMOTIONAL BAG

Hardware

1шт.

20

SBA198416640

LEVEL GAUGE CONTROL

1шт.

21

SBA052100100

O-RING

2шт.

22

495-21056

WASHER,1/2"

1шт.

23

86567996

PIN,31.75mm OD x 157mm L

4шт.

24

87033074

BRACKET

1шт.

25

87033073

BOLT

U

1шт.

26

231-4145

NUT,5/16"-18, GB

6шт.

27

432-1216

COTTER PIN,3/16" x 1"

1шт.

28

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

29

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.
