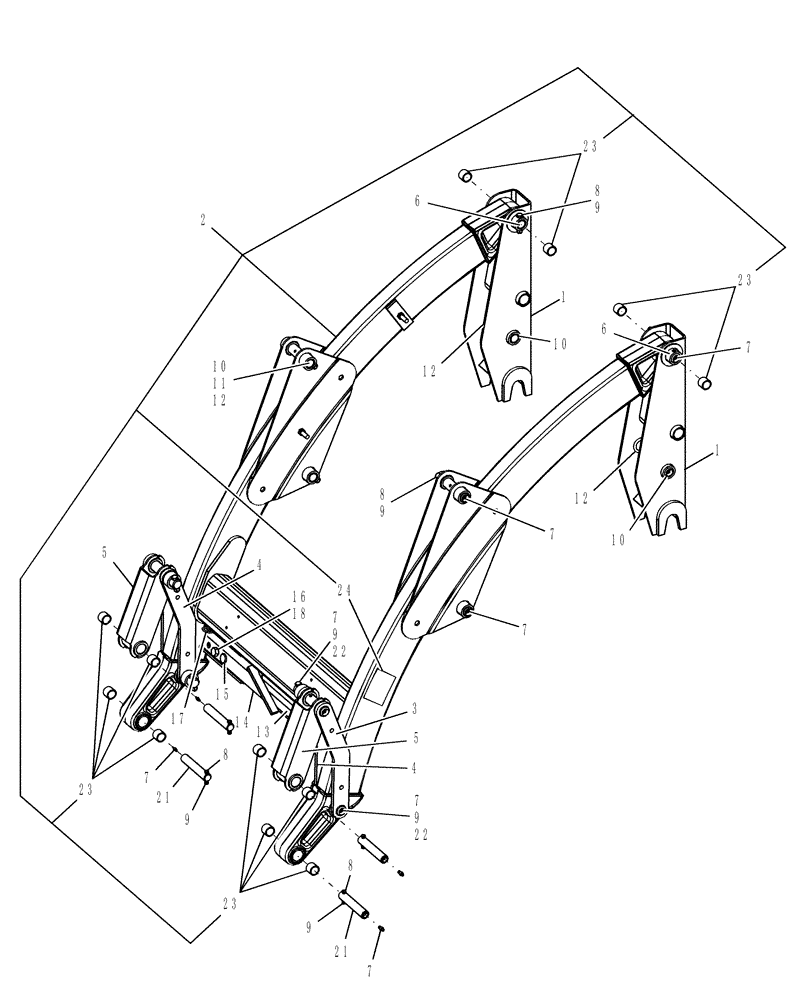

Запчасти Case IH LX112 (001) - LOADER FRAME (00) - COMPLETE MACHINE

1

87023003

TOWER

2шт.

2

87043614

BOOM

1шт.

3

86982754

LINK

Outside

2шт.

4

86982758

LINK

Inside

2шт.

5

87043615

LINK ASSY.

2шт.

6

86982790

PIN ASSY.

2шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

14шт.

8

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

10шт.

9

232-4145

LOCK NUT,5/16"-18, GC

14шт.

10

86977574

PIN ASSY.

2шт.

11

86978665

PIN ASSY.

4шт.

12

86837801

PIN,7.93mm OD x 44.45mm L

Wire Lock

2шт.

13

87043613

SUPPORT

Leg, Upper Support

1шт.

14

87043612

SUPPORT

Leg, Lower Support, 38 mm Sq.

1шт.

Prior to P.I.N.

1шт.

14

87307725

STAND

Leg, Lower Support, 44.5 mm Sq.

1шт.

P.I.N. & After

1шт.

15

86980627

PIN,1/2" OD x 2-3/4" L

2шт.

16

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

Cap, HH, G5, 1/2"-13 x 3"

2шт.

17

86511448

COTTER PIN,0.148" Dia x 3.31" L

9/64" x 3-5/16"

2шт.

18

232-4148

NUT,1/2"-13, GC

2шт.

19

87012661

ROD

Levelling

1шт.

20

87010736

TUBE,424 mm L

Levelling Rod

1шт.

21

87014863

PIN ASSY.

Bucket Attaching

4шт.

22

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

23

87028438

BUSHING

Bushing

12шт.

24

86979961

DANGER DECAL

DANGER

2шт.
