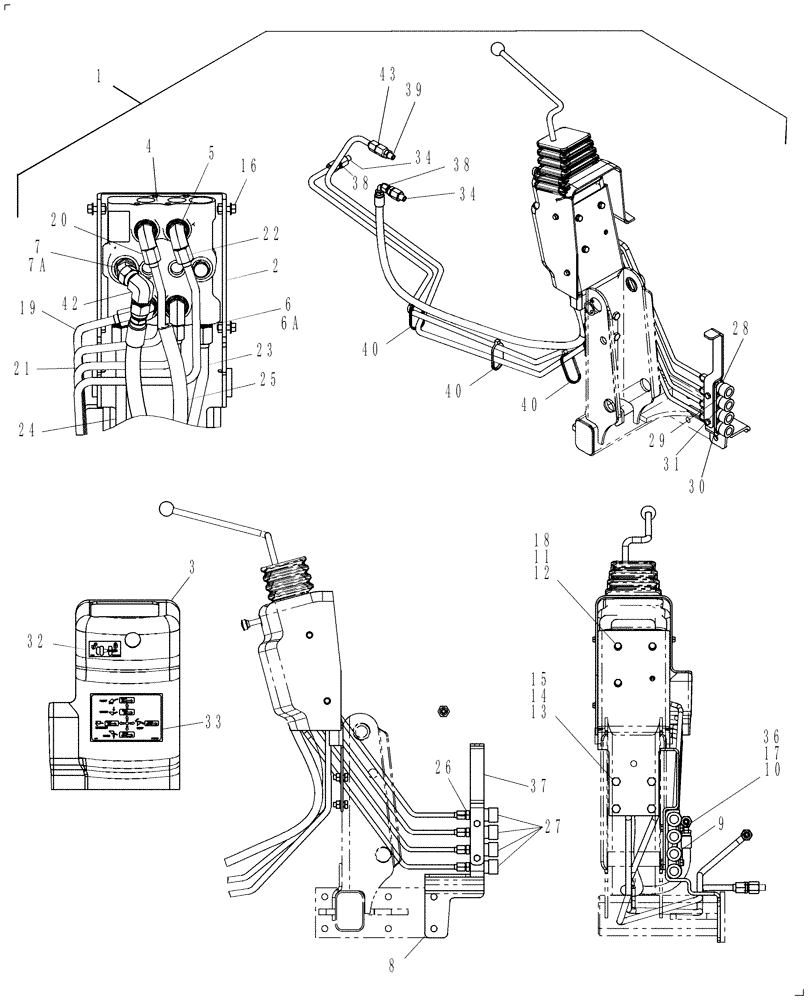

Запчасти Case IH LX110 (006) - MID-MOUNT HYDRAULIC CONTROL VALVE KIT (TZ18DA,TZ22DA,TZ24DA,TZ25DA,T1010,T1030,BOOMER 1020 & 1025) - 710440086

1

710440086

DIA KIT, TRAC HYD SY

Mid-Mount Hydraulic Control Valve Kit Includes: 2-43

1шт.

2

87033522

BRACKET

Valve Mount

1шт.

3

86982818

VALVE COVER

1шт.

4

87027585

CONTROL VALVE

Loader

1шт.

5

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

4шт.

6

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Includes: Ref. 6A

2шт.

6a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

Includes: Ref. 7A

1шт.

7a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

87029010

BRACKET

Quick Coupling

1шт.

9

86549922

CLAMP

2шт.

10

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

11

80681

LOCK WASHER,5/16"

3шт.

12

43232

BOLT,Hex, M8 x 16mm, Cl 10.9

Cap, HH, CL 10.9, M8 x 1.25 x 16

3шт.

13

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

4шт.

14

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

15

86500689

NUT,M10 x 1.5, Cl 10

4шт.

16

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

3шт.

17

87013050

SPACER

2шт.

18

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

3шт.

19

87029011

HYD TUBE,0.375" OD

Port 2B

1шт.

20

87029012

HYD TUBE,0.375" OD

Port 2A

1шт.

21

87029013

HYD TUBE,0.375" OD

Port 1B

1шт.

22

87029014

HYD TUBE,0.375" OD

Port 1A

1шт.

23

87029015

HYD TUBE,0.50" OD

Inlet

1шт.

24

87029016

HYD TUBE,0.50" OD

Outlet

1шт.

25

87029017

HOSE ASSY.

Sump

1шт.

26

235534

HYD CONNECTOR,9/16" - 18 JIC x 3/8" - 18 NPT

4шт.

27

9846343

COUPLING,3/8" NPTF

Hydraulic, Female, O-Ring used is 122056 & Back-Up Ring used is 647327

4шт.

28

86581682

BAND

Blue

1шт.

29

86581683

BAND

Red

1шт.

30

86581684

BAND

Yellow

1шт.

31

86581685

BAND

Green

1шт.

32

86401119

DECAL

Valve Lock

1шт.

33

87036845

DECAL

Loader Control

1шт.

34

87035861

ADAPTER,1/4"-18 Male NPTF x 3/8"-18 Female NPTF

2шт.

36

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

37

87036827

BRACKET

Quick Coupling

1шт.

38

163334

HYD CONNECTOR,3/4" - 16 JIC x 3/8" - 18 NPT

2шт.

39

87301948

HYD CONNECTOR,3/8"-18 NPTF x 1/4"-18 NPTF

1шт.

40

323597

CABLE TIE,165mm OAL x 9mm Thk

CABLE STRAP Tie

3шт.

41

SBA340170980

VALVE

Power Beyond Poppet

1шт.

42

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

43

167503

HYD CONNECTOR,3/4"-16, 37 Degree x 3/8"-18, Fem Pipe

1шт.
