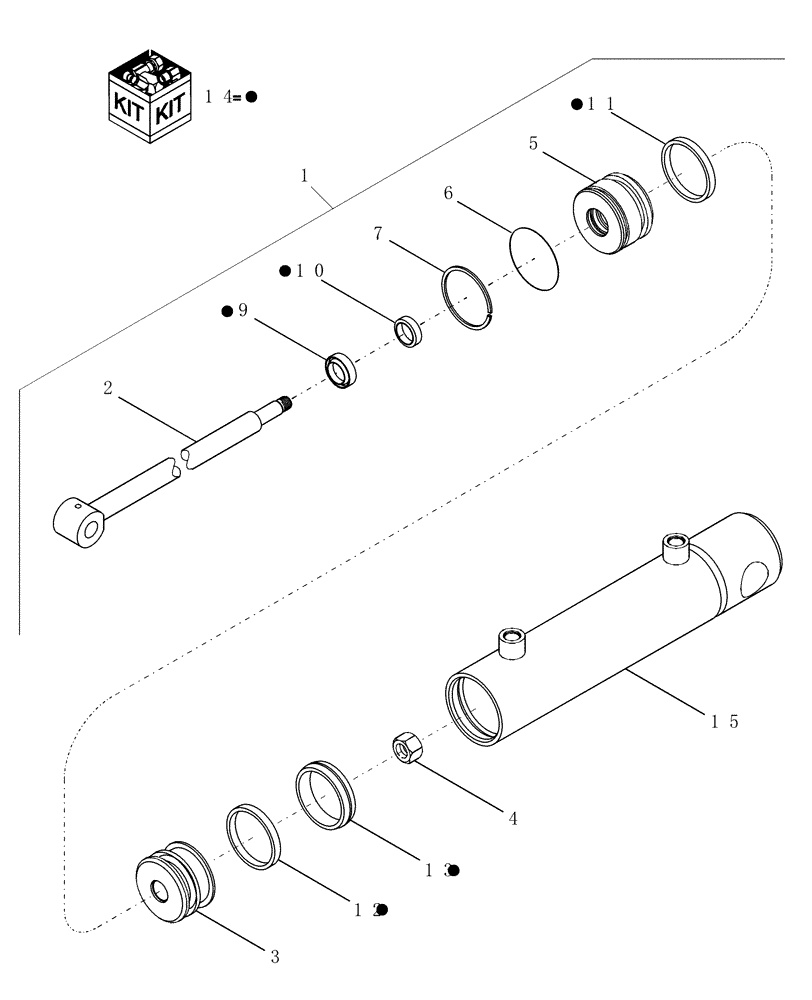

Запчасти Case IH LX110 (005) - BUCKET CYLINDER

1

87039391

LIFT CYLINDER,Double Acting, 25.4mm Rod, 144.8mm Stroke

1шт.

2

87041649

PISTON ROD

1шт.

3

87041650

PISTON

1шт.

4

NSS

NOT SOLD SEPARAT

Nut

1шт.

5

87041651

CYLINDER HEAD

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper, Rod

1шт.

10

NSS

NOT SOLD SEPARAT

Seal, Rod

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

12

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Piston Guide

1шт.

14

87041643

SEAL KIT

1шт.

15

87041648

HOUSING

Cylinder

1шт.
