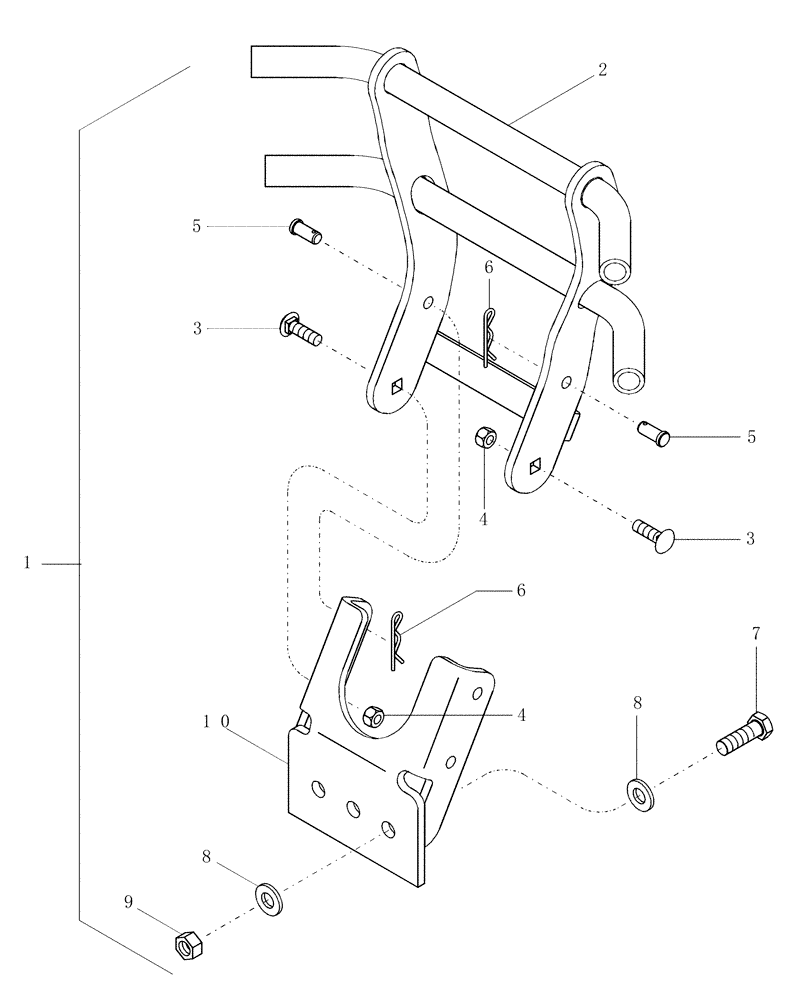

Запчасти Case IH LX110 (010) - GRILLE GUARD KIT - 719849076

1

719849076

DIA KIT, TRACTOR

Kit, Grille Guard

1шт.

2

NSS

NOT SOLD SEPARAT

Grille Guard

1шт.

3

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

2шт.

4

231-4148

NUT,1/2"-13, GB

2шт.

5

427-8114

CLEVIS PIN,12.7mm OD x 28.98mm L

1/2" x 1-1/8"

2шт.

6

136-164

COTTER PIN,Int, 5/16" x .120"

5/16" x 2-3/4"

2шт.

7

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

3шт.

8

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

Hardened, M16

3шт.

9

231-41410

NUT,5/8"-11, GB

3шт.

10

NSS

NOT SOLD SEPARAT

Bracket

1шт.
