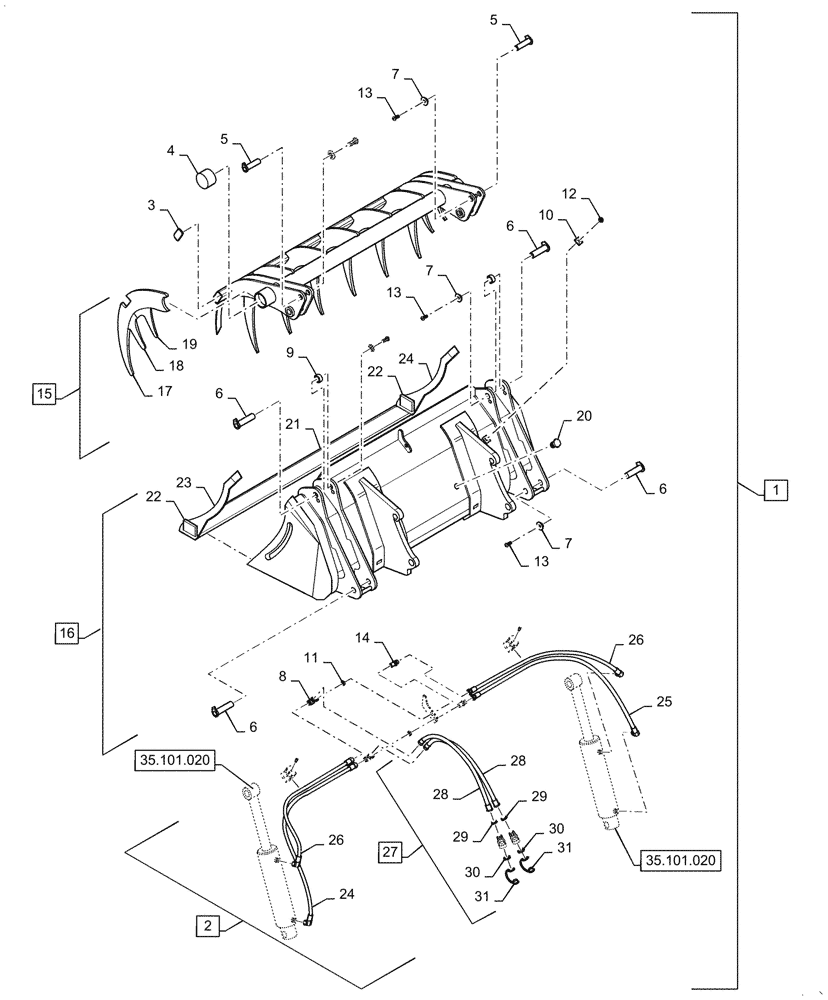

Запчасти Case IH L795 (82.301.240) - VAR - 730796006 - POWER GRAB, GRAPPLE, 102", SILAGE, HEAVY DUTY (82) - FRONT LOADER & BUCKET

1

NSS

NOT SOLD SEPARAT

Power Grab 260, HD, 102", HD, Incl 2 - 31, Order Through Wholegoods 730796006

1шт.

2

LDR9031432

HOSE KIT

Power Grab, 260, HD, 102" Incl 25 - 31

1шт.

3

LDR11261472

COVER

Plastic Tube

2шт.

4

LDR11261471

COVER

Plastic

2шт.

5

LDR9020073

PIVOT PIN

2шт.

6

LDR9020063

PIVOT PIN

35mm OD x 179mm L

4шт.

7

LDR5215131

CAP,Locking Cover

6шт.

8

LDR5028031

COUPLING

Hydraulic

2шт.

9

LDR5018514

BUSHING,35mm L

4шт.

10

LDR5016968

CLAMP BRACKET

Hose

2шт.

11

LDR5011757

NUT

2шт.

12

LDR5011553

NUT,M8

M8

2шт.

13

LDR5004917

SCREW,MC6S

6шт.

14

LDR1120159

ADAPTER

2шт.

15

LDR11262097

GRAPPLE

Power Grab, 260, HD, Incl 17 - 19

1шт.

16

LDR11262051

BUCKET

Power Grab, 102", HD, Incl 20 - 24

1шт.

17

LDR11262091

CLAW

7шт.

18

LDR11262089

CLAW

Front, Side

2шт.

19

LDR11262090

CLAW

Rear, Side

2шт.

20

LDR5022119

PLUG

Bucket

1шт.

21

LDR11260061

CUTTING EDGE

102" L

1шт.

22

LDR11261438

CUTTING EDGE

80mm L

2шт.

23

LDR11261467

STEEL PLATE

Stiffening, LH

1шт.

24

LDR11261468

STEEL PLATE

Stiffening, RH

1шт.

25

LDR9031495

HOSE

Lower, 3/8" OD

1шт.

26

LDR9031499

HOSE

Upper, 3/8" OD

2шт.

27

LDR9031565

COUPLING

Hydraulic Hose, 1/2", Incl 28 - 31

2шт.

28

LDR9031566

HOSE

Coupler, 1/2" OD

1шт.

29

LDR5013853

WASHER

1шт.

30

LDR5044127

COUPLING, QUICK, FEM,1/2"

1шт.

31

LDR5044130

PROTECTIVE COVER

Dust

1шт.
