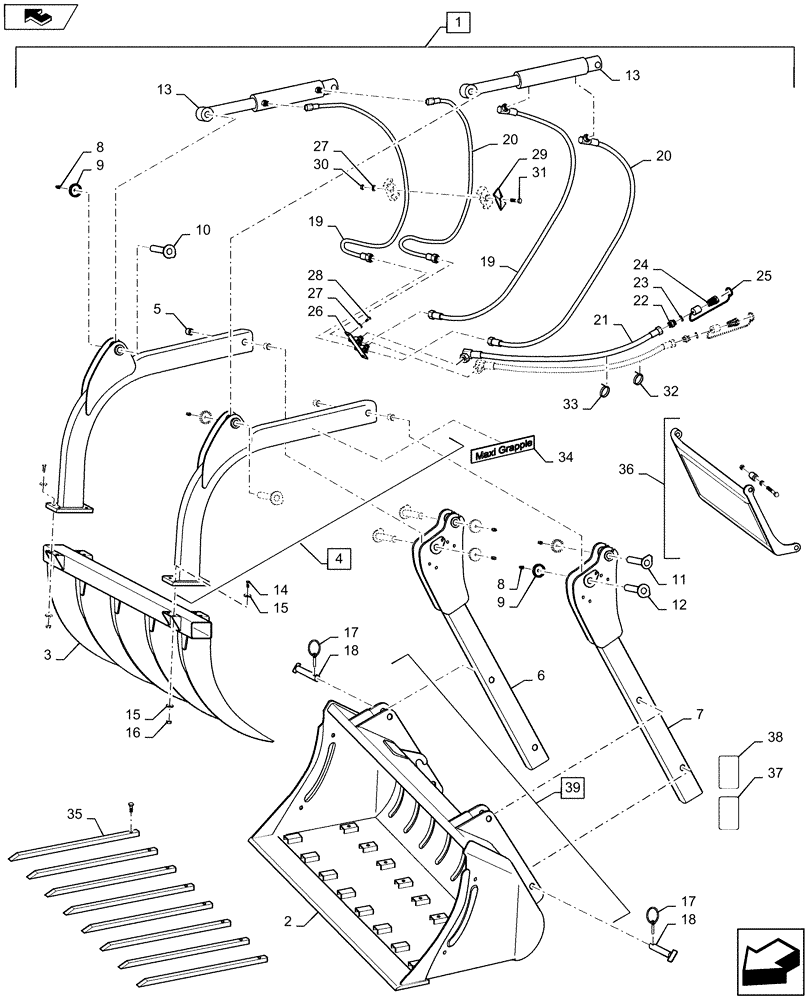

Запчасти Case IH L795 (82.300.AX[03]) - VAR - 730797006 - 102" HD BUCKET AND GRAPPLE WITH BACKSCREEN (82) - FRONT LOADER & BUCKET

2

LDR11260044

CUTTING EDGE

1шт.

3

LDR11261280

KIT

Weld On

5шт.

4

LDR11260643

BEAM

Incl 5

2шт.

5

LDR5018515

BUSHING,30mm L

4шт.

6

LDR11260650

BRACKET

RH

1шт.

7

LDR11260651

BRACKET

LH

1шт.

8

LDR5004917

SCREW,MC6S

6шт.

9

LDR5215131

CAP,Locking Cover

6шт.

10

LDR9020043

PIVOT PIN,30mm OD x 105mm L

2шт.

11

LDR9020046

PIVOT PIN

2шт.

12

LDR9020047

PIVOT PIN

2шт.

13

LDR12709710

CYLINDER,Double Acting, 40mm Rod

2шт.

14

LDR5002154

BOLT,M16 x 50mm

8шт.

15

LDR5013103

WASHER,12mm ID x 22mm OD

16шт.

16

LDR5011557

LOCK NUT,M16

8шт.

17

LDR1102001

LINCH PIN

4шт.

18

LDR1116643

PIVOT PIN

4шт.

19

LDR11252001

HYDRAULIC HOSE

2шт.

20

LDR11252003

HYDRAULIC HOSE

2шт.

21

LDR1103116

FLEXIBLE HOSE,550mm L

2шт.

22

LDR5027934

HYD CONNECTOR,3/8" x 1/2"

2шт.

23

LDR5013604

WASHER,21mm ID x 28mm OD

2шт.

24

LDR5044127

COUPLING, QUICK, FEM,1/2"

2шт.

25

LDR5044130

PROTECTIVE COVER

2шт.

26

LDR10834151

UNION

1шт.

27

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

6шт.

28

LDR5002058

SCREW

2шт.

29

LDR5016968

CLAMP BRACKET

2шт.

30

LDR5011553

NUT,M8

2шт.

31

LDR5002059

SCREW,M8 x 60mm

2шт.

32

LDR5022179

CABLE TIE

Blue

1шт.

33

LDR5022177

CABLE TIE

Red

1шт.

34

LDR11136505

DECAL

2шт.

35

LDR10834142

TINE

8шт.

36

LDR11262068

SCREEN

1шт.

37

LDR1123673

DECAL

1шт.

38

LDR1123674

DECAL

1шт.

39

LDR11262052

BUCKET

Incl 2

1шт.
