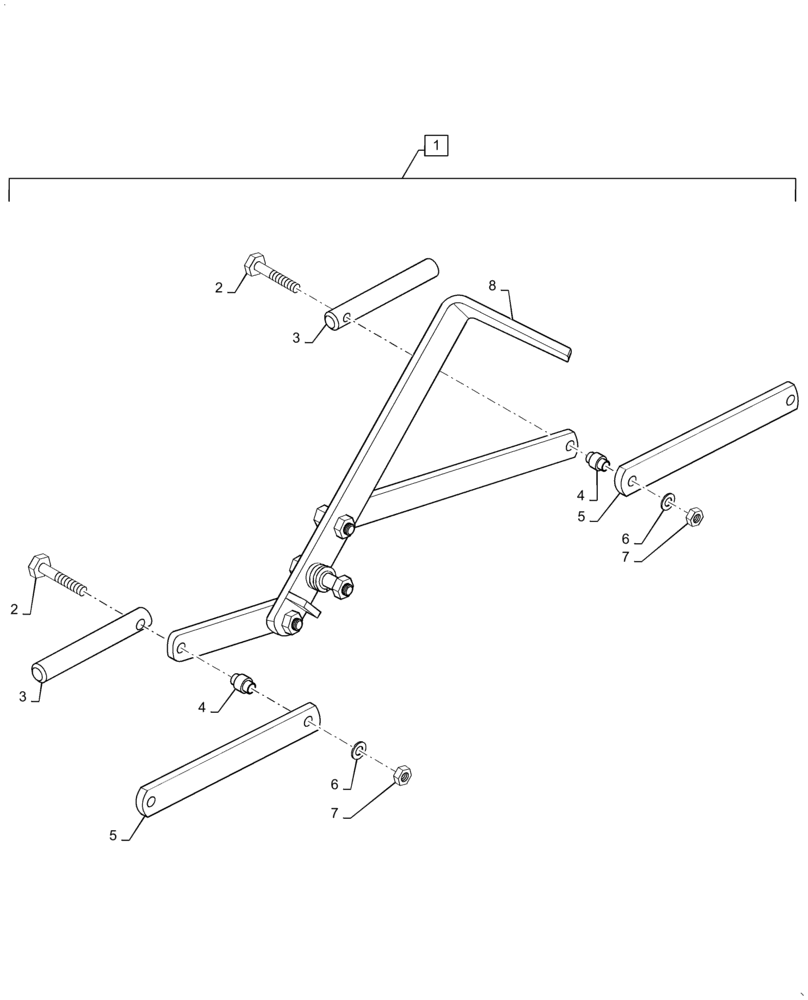

Запчасти Case IH L795 (82.100.AH[03]) - LOCKING MECHANISM KIT - LDR5220596 (82) - FRONT LOADER & BUCKET

1

LDR5220569

LOCKING DEVICE

Incl 2 - 8

1шт.

2

LDR5002082

SCREW

M6S M10 x 70 (8.8)

2шт.

3

LDR5219044

LOCK PIN

20mm

2шт.

4

LDR5220565

SPACER

2шт.

5

LDR5220566

CRANK LEVER

2шт.

6

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

BRB 10.5 x 22 x 2

2шт.

7

LDR5011554

NUT,M10

2шт.

8

LDR5220265

LEVER ASSY & KNOB

1шт.
