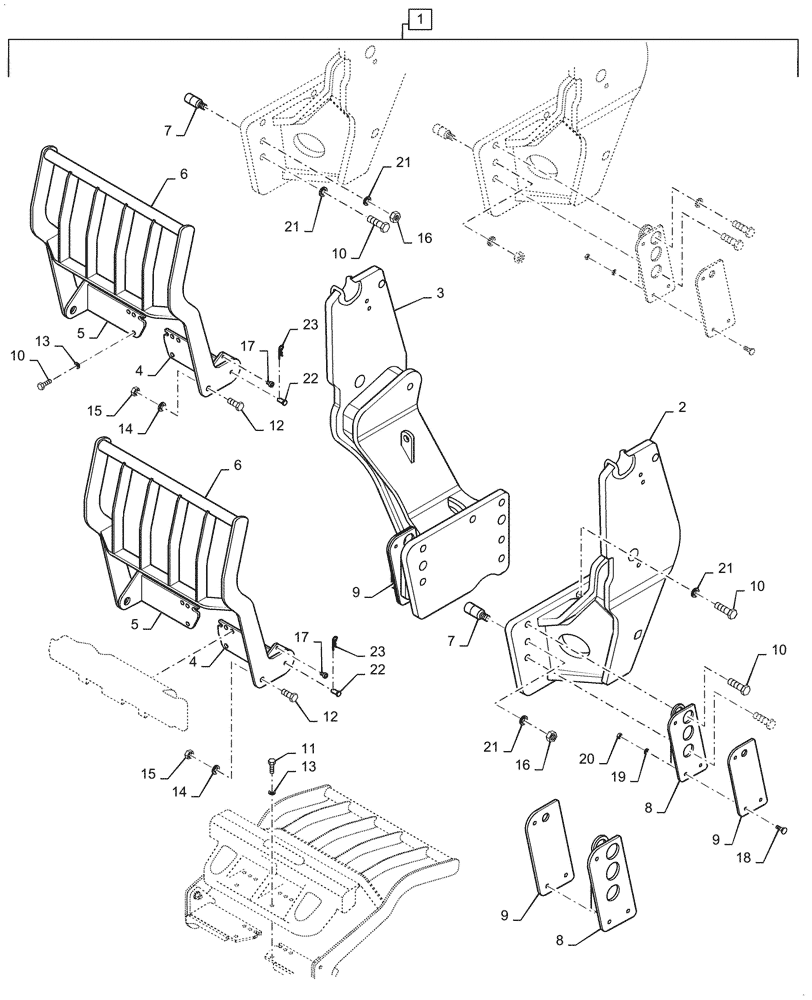

Запчасти Case IH L795 (39.100.350) - VAR - 730810006 - SUBFRAME, MOUNTING PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

Subframe, Incl 2 - 23, Order Through Wholegoods 730810006

1шт.

Compatible Tractors - Magnum 235, 290, 315, 340, T4A, T4B

1шт.

2

LDR10411601

FRAME

Subframe, LH, Incl in 1

1шт.

3

LDR10411602

FRAME

Subframe, RH, Incl in 1

1шт.

4

LDR10411983

BRACKET

LH

1шт.

5

LDR10411984

BRACKET

RH

1шт.

6

LDR10411987

GUARD

Grille

1шт.

7

LDR10411782

PIN

Subframe

2шт.

Used Without Front Fenders

1шт.

8

LDR10411611

BRACKET, SUPPORTING

LH, Support

1шт.

Used With Fenders

1шт.

9

LDR10411612

BRACKET, SUPPORTING

RH, Support

1шт.

Used With Fenders

1шт.

10

LDR5002213

SCREW,M20 x 75mm, Cl 10.9

20шт.

11

LDR5002979

SCREW

M20 x 150mm L, Cl 10.9

8шт.

Used With Front Weight Bracket

1шт.

12

LDR5002252

BOLT

M24 x 70mm L, Cl 8.8

2шт.

13

LDR5013127

WASHER,21mm ID x 36mm OD x 3mm

8шт.

14

LDR5013128

LOCK WASHER

25mm ID x 45mm OD x 4mm Thk

2шт.

15

LDR5011560

LOCK NUT

M24

2шт.

16

LDR5011059

NUT

M20

2шт.

17

LDR5004940

SCREW

M16 x 20, Cl 8.8

2шт.

18

LDR5005997

SCREW

M8 x 30, Cl 4.6

6шт.

19

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

6шт.

20

LDR5011053

NUT

M8

6шт.

21

LDR5013926

WASHER

21.4mm ID x 30.7mm OD x 3.4mm Thk

14шт.

22

LDR5016207

LOCK PIN

Grille Guard

2шт.

23

LDR5016053

COTTER PIN

Grille Guard

2шт.
