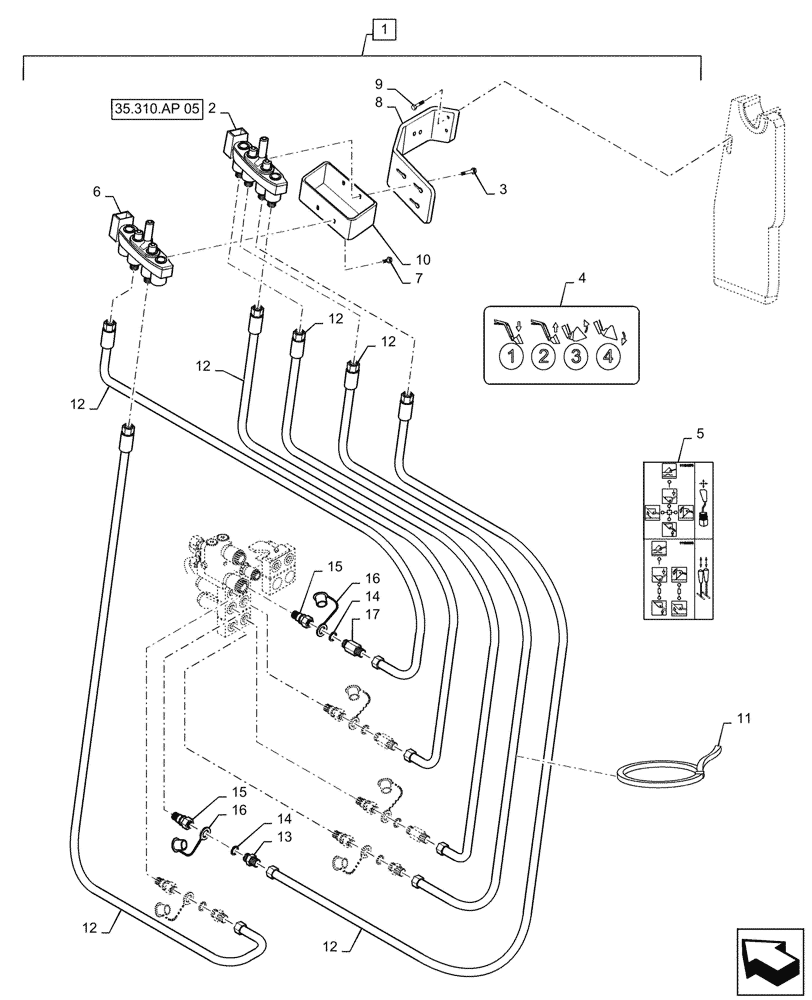

Запчасти Case IH L795 (35.734.AA[01]) - VAR - 713615006 - 3 FUNCTION REAR HOSE KIT WITH MULTI COUPLER FOR MAGNUM TIER 4 (35) - HYDRAULIC SYSTEMS

1

NS

NOT SERVICED

Order 713615006 from Wholegoods, Incl 2 - 17

1шт.

2

LDR5044990

COUPLING,MC4 J 7/8"

1шт.

3

LDR5006017

SCREW,M8 x 30

2шт.

4

LDR11135173

DECAL

1шт.

5

LDR11134370

DECAL

1шт.

6

LDR5044992

COUPLING,MC2 J 7/8"

1шт.

7

LDR5006000

SCREW,M8 x 20, Cl 8.8

2шт.

8

LDR10391712

BRACKET

1шт.

9

LDR5005999

SCREW,M10 x 45mm

1шт.

10

LDR10413875

BRACKET, SUPPORTING

1шт.

11

LDR5033606

CABLE TIE

6шт.

12

LDR9032078

FLEXIBLE HOSE

6шт.

13

LDR1120133

END FITTING

3шт.

14

LDR5013853

WASHER

6шт.

15

LDR5044128

QUICK MALE COUPLING

6шт.

16

LDR5044129

CAP

6шт.

17

LDR11120497

END FITTING

3шт.
