(35.525.AA[06]) - VAR - 713614006 - 4 HOSE STANDARD KIT WITH MULTI COUPLER FOR MAGNUM TIER 4

Запчасти Case IH L795 (35.525.AA[06]) - VAR - 713614006 - 4 HOSE STANDARD KIT WITH MULTI COUPLER FOR MAGNUM TIER 4 (35) - HYDRAULIC SYSTEMS

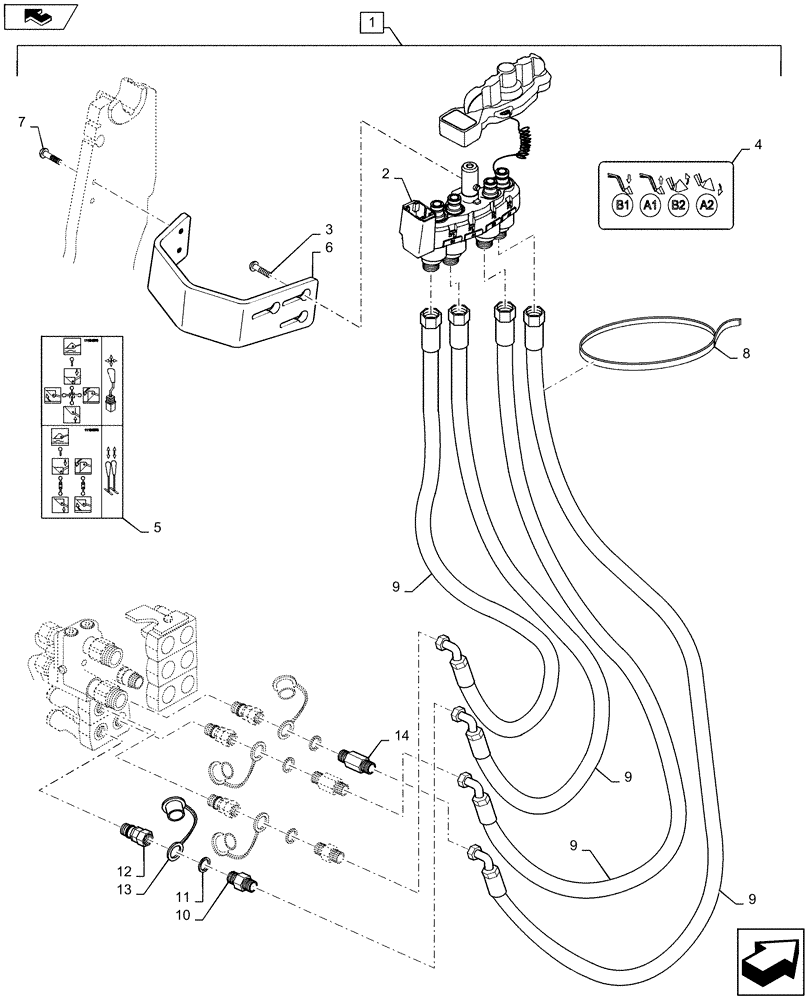

Схема запчастей Case IH L795 - (35.525.AA[06]) - VAR - 713614006 - 4 HOSE STANDARD KIT WITH MULTI COUPLER FOR MAGNUM TIER 4 (35) - HYDRAULIC SYSTEMS
9
3
4
5
7
8
14
home
1
2
10
11
9
9
9
12
6
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

LDR5044952

COUPLING,MC4 J, 7/8"

1шт.

3

LDR5006018

SCREW,M8 x 25mm

2шт.

4

LDR11135173

DECAL

1шт.

5

LDR11134370

DECAL

1шт.

6

LDR10391887

BRACKET

1шт.

7

LDR5005999

SCREW,M10 x 45mm

2шт.

8

LDR5033606

CABLE TIE

6шт.

9

LDR9032078

FLEXIBLE HOSE

4шт.

10

LDR1120133

END FITTING

2шт.

11

LDR5013853

WASHER

4шт.

12

LDR5044128

QUICK MALE COUPLING

4шт.

13

LDR5044129

CAP

4шт.

14

LDR11120497

END FITTING

2шт.

Выбрано товаров: 13
