(35.100.02) - CYLINDER (LDR12715810)

Запчасти Case IH L790 (35.100.02) - CYLINDER (LDR12715810) (35) - HYDRAULIC SYSTEMS

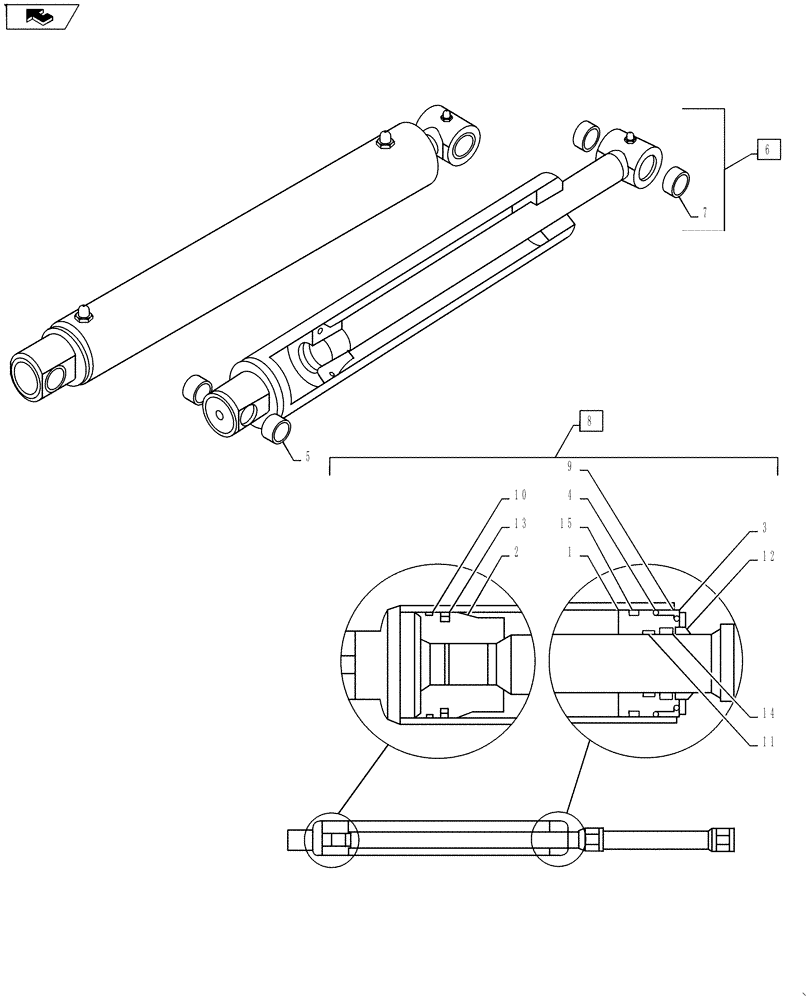

Схема запчастей Case IH L790 - (35.100.02) - CYLINDER (LDR12715810) (35) - HYDRAULIC SYSTEMS
5
4
14
7
13
10
home
8
15
1
11
12
2
9
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR12710011

BEARING ASSY

1шт.

2

LDR12710012

PISTON

1шт.

3

LDR5016624

RING

Retaining

1шт.

4

LDR5016677

RING

Retaining

1шт.

5

LDR5018514

BUSHING,35mm L

2шт.

6

LDR12715723

FLUID COUPLING

Piston Rod cpl., Includes Ref. 7

1шт.

7

LDR5018514

BUSHING,35mm L

2шт.

8

LDR5033710

SEAL PACKAGE

Kit, Includes Ref. 9-15

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, 91.6 x 3.53

1шт.

10

NSS

NOT SOLD SEPARAT

Guide Ring, 100/95 x 5.5

1шт.

11

NSS

NOT SOLD SEPARAT

Guide Ring, 50/55 x 9.7

1шт.

12

NSS

NOT SOLD SEPARAT

Wiper, 50/60 x 7/10

1шт.

13

NSS

NOT SOLD SEPARAT

Piston Seal, 100/84.5 x 6.3

1шт.

14

NSS

NOT SOLD SEPARAT

Seal, 50/60 x 10

1шт.

15

NSS

NOT SOLD SEPARAT

Cover Seal, 100 x 93.8 x 6.9

1шт.
