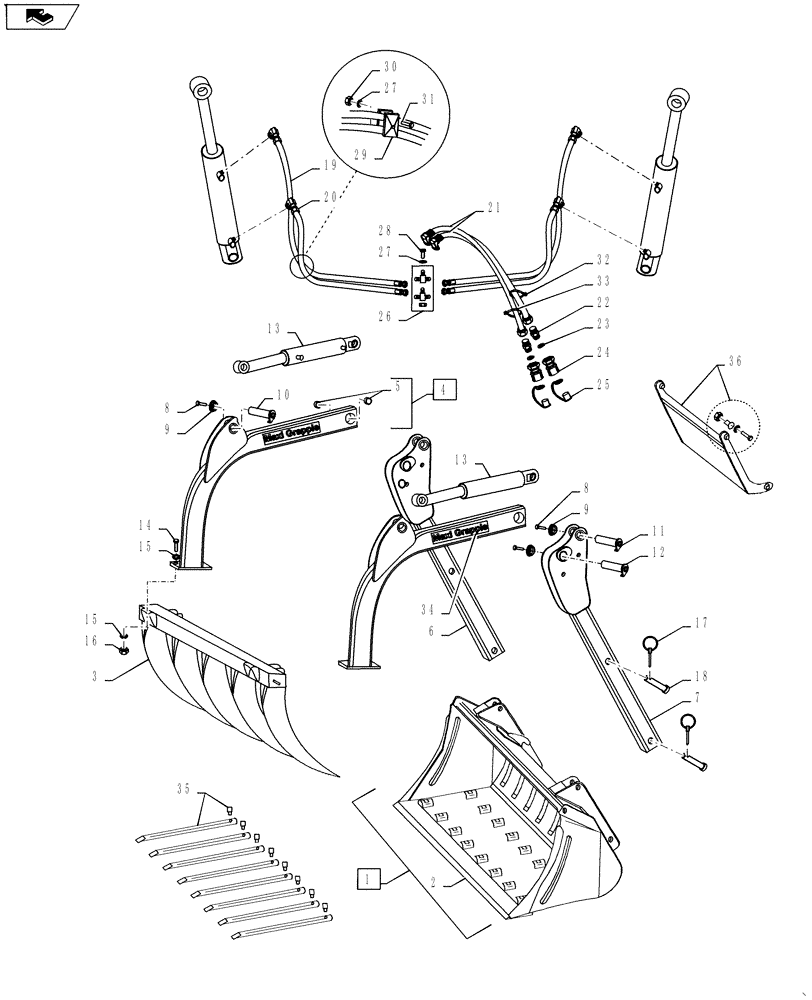

Запчасти Case IH L790 (82.100.06) - MAXI GRAPPLE 260 WITH TINES AND BACK SCREEN (82) - FRONT LOADER & BUCKET

1

LDR11262052

BUCKET

Includes Ref. 2

1шт.

2

LDR11260044

CUTTING EDGE

1шт.

3

LDR11262063

CLAW

1шт.

4

LDR11260643

BEAM

Arm, Includes Ref. 5

2шт.

5

LDR5018515

BUSHING,30mm L

4шт.

6

LDR11260650

BRACKET

Arm, Right

1шт.

7

LDR11260651

BRACKET

Arm, Left

1шт.

8

LDR5004917

SCREW,MC6S

MC6S 10x20

6шт.

9

LDR5215131

CAP,Locking Cover

Cover

6шт.

10

LDR9020043

PIVOT PIN,30mm OD x 105mm L

D=30MM

2шт.

11

LDR9020046

PIVOT PIN

D=30MM

2шт.

12

LDR9020047

PIVOT PIN

D=30MM

2шт.

13

LDR12709710

CYLINDER,Double Acting, 40mm Rod

2шт.

LDR12709710R

REMAN-HYD CYLINDER

L790 (1/11-)

2шт.

LDR12709710C

CORE-HYD CYLINDER

Return Number

1шт.

14

LDR5002154

BOLT,M16 x 50mm

M6S 16x50

8шт.

15

LDR5013105

WASHER

16шт.

16

LDR5011557

LOCK NUT,M16

8шт.

17

LDR1102001

LINCH PIN

Locking Ring

4шт.

18

LDR1116643

PIVOT PIN

D=30MM

4шт.

19

LDR11252001

HYDRAULIC HOSE

3/8" L=1920

2шт.

20

LDR11252003

HYDRAULIC HOSE

3/8" L=1620

2шт.

21

LDR1103116

FLEXIBLE HOSE,550mm L

3/8" L=599

2шт.

22

LDR5027934

HYD CONNECTOR,3/8" x 1/2"

2шт.

23

LDR5013604

WASHER,21mm ID x 28mm OD

2шт.

24

LDR5044127

COUPLING, QUICK, FEM,1/2"

1/2"

2шт.

25

LDR5044130

PROTECTIVE COVER

2шт.

26

LDR10834151

UNION

1шт.

27

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

BRB 8.4x16

6шт.

28

LDR5002058

SCREW

M6S 8x16

2шт.

29

LDR5016968

CLAMP BRACKET

Hose

2шт.

30

LDR5011553

NUT,M8

M8

2шт.

31

LDR5002059

SCREW,M8 x 60mm

M6S 8x60

2шт.

32

LDR5022179

CABLE TIE

CABLE STRAP Tie, Blue

1шт.

33

LDR5022177

CABLE TIE

CABLE STRAP Tie, Red

1шт.

34

LDR1123675

DECAL

2шт.

35

LDR10834142

TINE

Complete

8шт.

36

LDR11262068

SCREEN

1шт.
