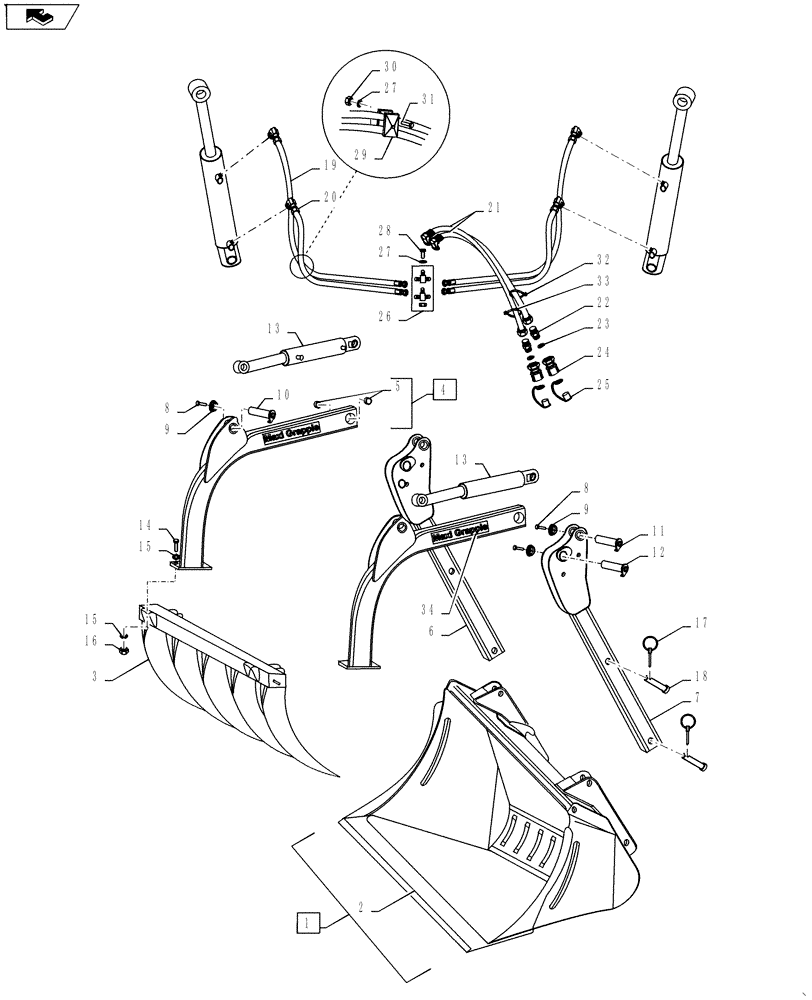

Запчасти Case IH L790 (82.100.04) - MAXI GRAPPLE 260 (82) - FRONT LOADER & BUCKET

1

LDR11262052

BUCKET

Includes Ref. 2

1шт.

2

LDR11260044

CUTTING EDGE

1шт.

3

LDR11262063

CLAW

1шт.

4

LDR11260643

BEAM

Arm, Includes Ref. 5

2шт.

5

LDR5018515

BUSHING,30mm L

4шт.

6

LDR11260650

BRACKET

Arm, Right

1шт.

7

LDR11260651

BRACKET

Arm, Left

1шт.

8

LDR5004917

SCREW,MC6S

MC6S 10x20

6шт.

9

LDR5215131

CAP,Locking Cover

Cover

6шт.

10

LDR9020043

PIVOT PIN,30mm OD x 105mm L

D=30MM

2шт.

11

LDR9020046

PIVOT PIN

D=30MM

2шт.

12

LDR9020047

PIVOT PIN

D=30MM

2шт.

13

LDR12709710

CYLINDER,Double Acting, 40mm Rod

2шт.

LDR12709710R

REMAN-HYD CYLINDER

L790 (1/11-)

2шт.

LDR12709710C

CORE-HYD CYLINDER

Return Number

1шт.

14

LDR5002154

BOLT,M16 x 50mm

M6S 16x50

8шт.

15

LDR5013105

WASHER

1шт.

16

LDR5011557

LOCK NUT,M16

8шт.

17

LDR1102001

LINCH PIN

Locking Ring

4шт.

18

LDR1116643

PIVOT PIN

D=30MM

4шт.

19

LDR11252001

HYDRAULIC HOSE

3/8" L=1920

2шт.

20

LDR11252003

HYDRAULIC HOSE

3/8" L=1620

2шт.

21

LDR1103116

FLEXIBLE HOSE,550mm L

3/8" L=599

2шт.

22

LDR5027934

HYD CONNECTOR,3/8" x 1/2"

2шт.

23

LDR5013604

WASHER,21mm ID x 28mm OD

2шт.

24

LDR5044127

COUPLING, QUICK, FEM,1/2"

1/2"

2шт.

25

LDR5044130

PROTECTIVE COVER

2шт.

26

LDR10834151

UNION

1шт.

27

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

BRB 8.4x16

6шт.

28

LDR5002058

SCREW

M6S 8x16

2шт.

29

LDR5016968

CLAMP BRACKET

Hose

2шт.

30

LDR5011553

NUT,M8

M8

2шт.

31

LDR5002059

SCREW,M8 x 60mm

M6S 8x60

2шт.

32

LDR5022179

CABLE TIE

CABLE STRAP Tie, Blue

1шт.

33

LDR5022177

CABLE TIE

CABLE STRAP Tie, Red

1шт.

34

LDR1123675

DECAL

2шт.
