(39.105.03) - LOADER BEAM WITH BUSHINGS

Запчасти Case IH L790 (39.105.03) - LOADER BEAM WITH BUSHINGS (39) - FRAMES AND BALLASTING

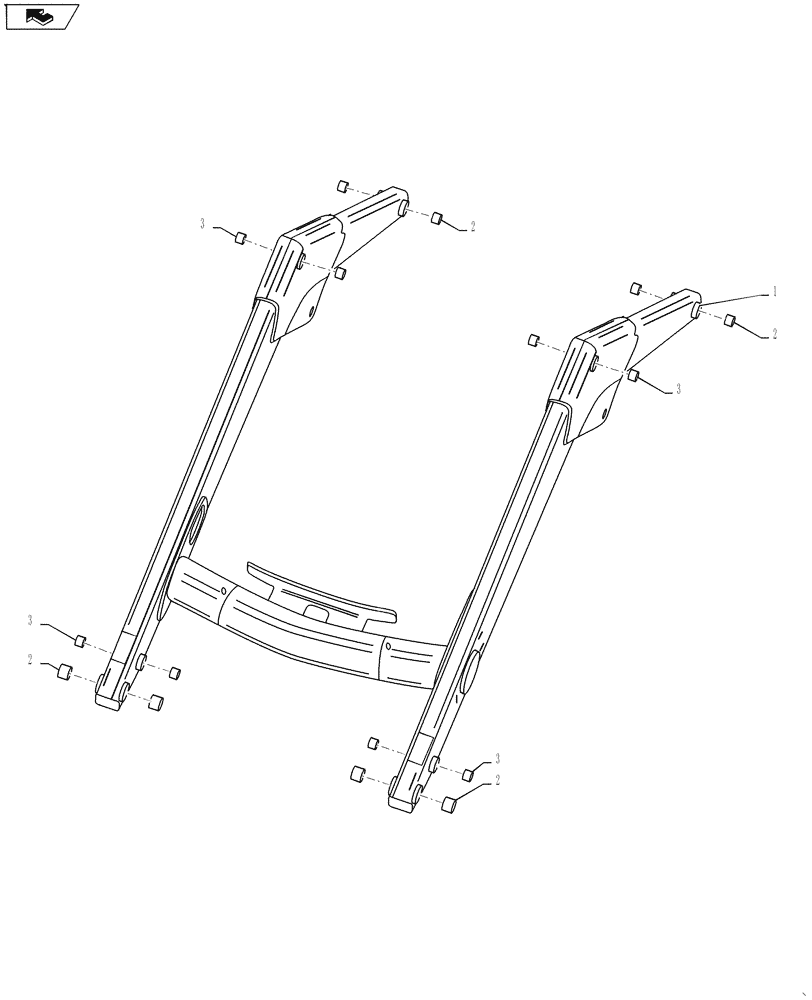

Схема запчастей Case IH L790 - (39.105.03) - LOADER BEAM WITH BUSHINGS (39) - FRAMES AND BALLASTING
3
3
3
home
2
2
2
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR5211768C

BEAM

Loader, With Bushings

1шт.

2

LDR5018904

BUSHING

8шт.

3

LDR5018514

BUSHING,35mm L

8шт.
