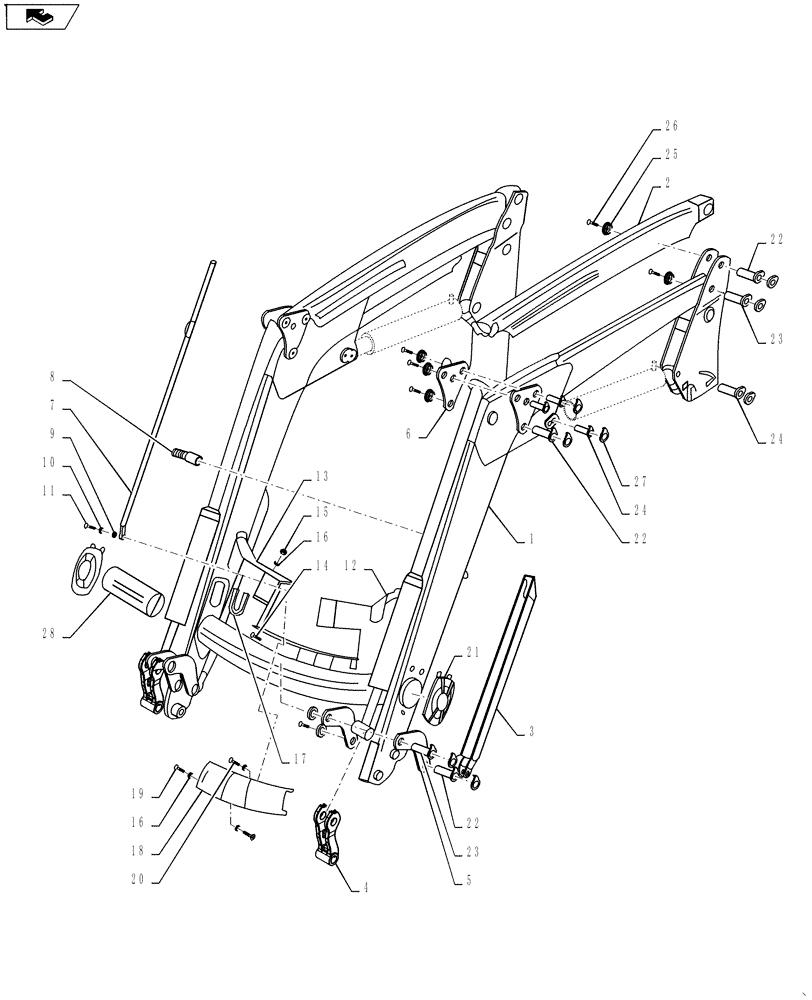

Запчасти Case IH L790 (39.105.01) - LOADER BEAM (39) - FRAMES AND BALLASTING

1

LDR5211768C

BEAM

Loader, With Bushings

1шт.

2

LDR5213538C

ROD

With Bushings

2шт.

3

LDR5218006C

STAND

Support Leg

2шт.

4

LDR5214832C

LINKAGE YOKE

With Bushings

2шт.

5

LDR5214112C

LINK

4шт.

6

LDR5214127C

LINK/SHACKLE

2шт.

7

LDR5215218

ROD

Indicator

1шт.

8

LDR5215208

HOLDER

Kit

1шт.

9

LDR5215227

SPACER

1шт.

10

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

10.5x22x2

1шт.

11

LDR5004920

SCREW

MC6S 10x50

1шт.

12

LDR5220534

BRACKET

1шт.

13

LDR5220536

BRACKET

1шт.

14

LDR5006001

SCREW

MVBF 8x20

4шт.

15

LDR5011553

NUT,M8

M8

4шт.

16

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

BRB 8.4x16

5шт.

17

LDR5215101

PROTECTIVE COVER

2шт.

18

LDR5215021

VALVE COVER

1шт.

19

LDR5011910

NUT

2шт.

20

LDR5002058

SCREW

M6S 8x16

1шт.

21

LDR5215193

COVER

2шт.

22

LDR9020035

PIVOT PIN,35mm OD x 127mm L

10шт.

23

LDR9020036

PIVOT PIN,40mm OD x 127mm L

4шт.

24

LDR9020038

PIVOT PIN,35.14mm OD x 106.42mm L

4шт.

25

LDR5215131

CAP,Locking Cover

22шт.

26

LDR5004917

SCREW,MC6S

MC6S 10x20

21шт.

27

LDR5215121

CAP COVER

22шт.

28

LDR5215183

BOX

1шт.
