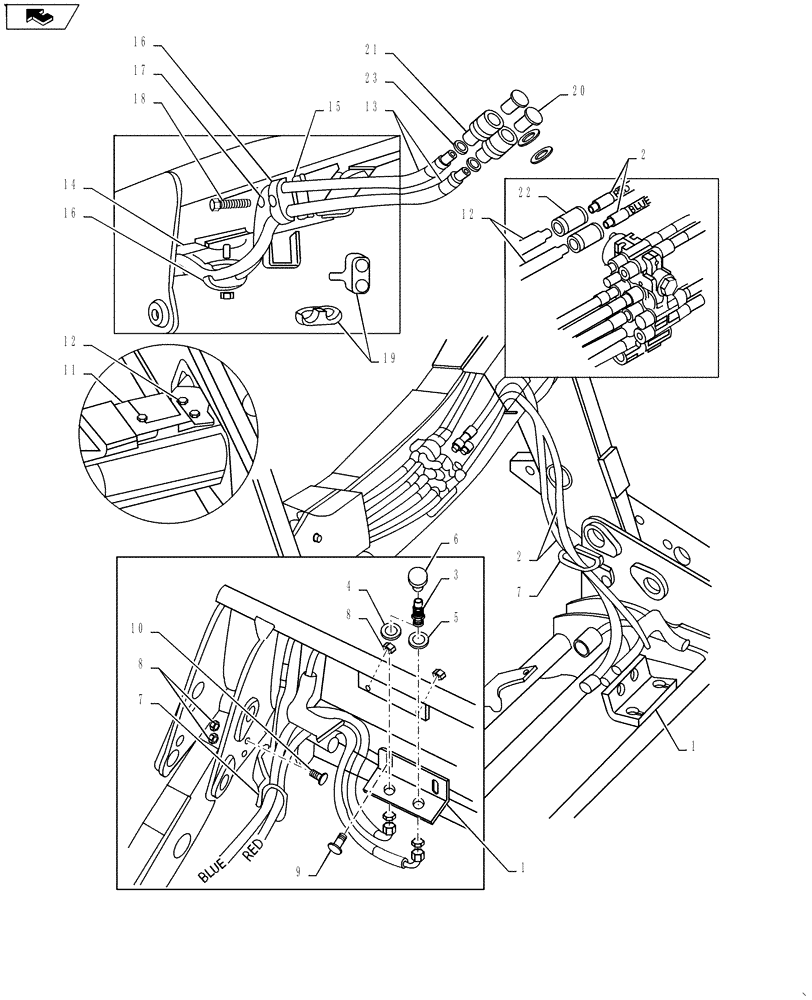

Запчасти Case IH L790 (35.850.05) - LIVE 3RD (35) - HYDRAULIC SYSTEMS

1

LDR5220303

BRACKET

1шт.

2

LDR9031774

HOSE

2шт.

3

LDR5044940

QUICK MALE COUPLING,3/8" BSP

BSP 3/8"

2шт.

4

LDR5022159

WASHER

Blue

1шт.

5

LDR5022157

WASHER

Red

1шт.

6

LDR5044129

CAP

2шт.

7

LDR5219183

GUIDE

Hose

1шт.

8

LDR5011554

NUT,M10

M10

4шт.

9

LDR5006002

SCREW

MVBF 10x30

2шт.

10

LDR5006003

SCREW

MVBF 10x40

2шт.

11

LDR5215067

GUIDE

Hose

1шт.

12

LDR5006007

SCREW

M6SF-TT M8x16

1шт.

13

LDR9031804

HOSE,4625mm L

3/8" L=4625

2шт.

14

LDR5220148

PLATE

1шт.

15

LDR5215163

BRACKET

Hose Clamp

1шт.

16

LDR5215161

CLAMP

Hose

2шт.

17

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

BRB 8.4x16

1шт.

18

LDR5004055

SCREW

MC6S 8x70

1шт.

19

LDR5215162

CLAMP BRACKET

Sleeve

2шт.

20

LDR5044130

PROTECTIVE COVER

2шт.

21

LDR5044127

COUPLING, QUICK, FEM,1/2"

1/2"

2шт.

22

LDR5027986

ADAPTER

Extension piece

2шт.

23

LDR5013853

WASHER

TREDO 1/2"

2шт.
