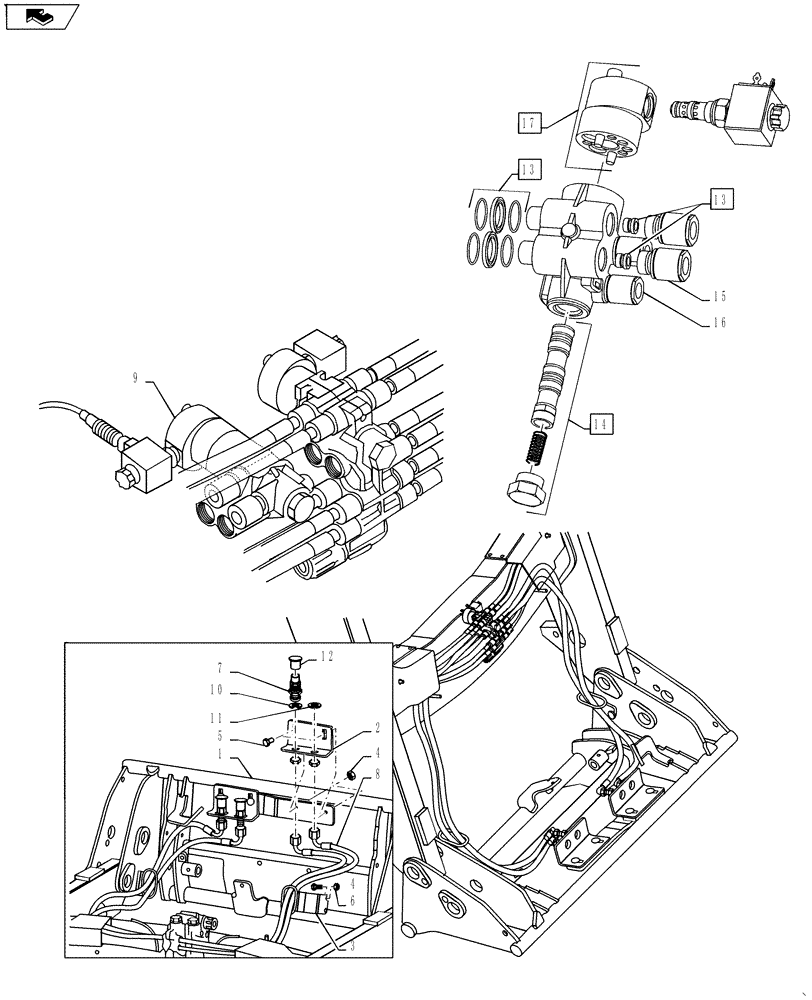

Запчасти Case IH L790 (35.850.04) - 4TH FUNCTION (35) - HYDRAULIC SYSTEMS

1

LDR5219189

BRACKET

Extension

1шт.

2

LDR5220303

BRACKET

1шт.

3

LDR5219183

GUIDE

Hose

1шт.

4

LDR5011554

NUT,M10

M10

6шт.

5

LDR5006002

SCREW

MVBF 10x30

2шт.

6

LDR5006003

SCREW

MVBF 10x40

4шт.

7

LDR5044940

QUICK MALE COUPLING,3/8" BSP

BSP 3/8"

2шт.

8

LDR9031775

HOSE

2шт.

9

LDR10550260

HYDRAULIC VALVE

Diverter

1шт.

10

LDR5022157

WASHER

Red

1шт.

11

LDR5022159

WASHER

Blue

1шт.

12

LDR5044129

CAP

2шт.

13

LDR10550328

KIT

Banking

1шт.

14

LDR10550321

PLUG

Spool Kit

1шт.

15

LDR5028005

ADAPTER

Coupling 1/2”

2шт.

16

LDR5028004

ADAPTER

Coupling 3/8"

2шт.

17

LDR10550265

SERVO-CONTROL

1шт.
