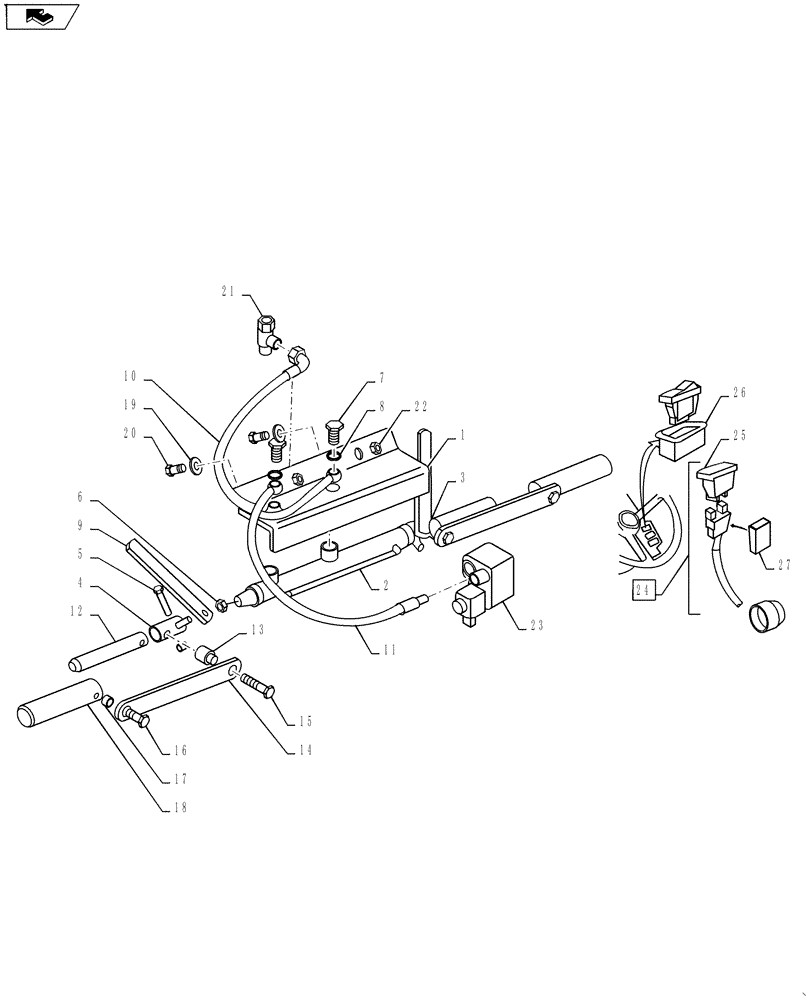

Запчасти Case IH L790 (35.350.01) - IMPLEMENT LOCK (35) - HYDRAULIC SYSTEMS

1

LDR5219048

PROTECTION PLATE

1шт.

2

LDR12713210

CYLINDER

1шт.

3

LDR5034092

SLEEVE

Right Hand

1шт.

4

LDR5034093

SLEEVE

Left Hand

1шт.

5

LDR5002055

SCREW

M6S 8x40

2шт.

6

LDR5011553

NUT,M8

M8

4шт.

7

LDR1120166

SCREW

Hollow

2шт.

8

LDR5013856

WASHER,1/4"

4шт.

9

LDR5219049

INDICATOR

2шт.

10

LDR9031170

FLEXIBLE HOSE

1/4"

1шт.

11

LDR9031484

HOSE

1/4"

1шт.

12

LDR5219044

LOCK PIN

2шт.

13

LDR5034090

SPACER

2шт.

14

LDR5220566

CRANK LEVER

Extension

2шт.

15

LDR5002080

SCREW

M6S 10x60

2шт.

16

LDR5002079

SCREW

M6S 10x50

2шт.

17

LDR5219100

SPACER

2шт.

18

LDR5220564

PIN

2шт.

19

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

10.5x22x2

2шт.

20

LDR5002077

SCREW

M6S 10x30

2шт.

21

LDR5027454

FLUID COUPLING

1шт.

22

LDR5011554

NUT,M10

M10

2шт.

23

LDR10550355

VALVE COVER

1шт.

24

LDR5201089

SWITCH

Safety Complete, Includes Ref. 25

1шт.

25

LDR5103006

SWITCH

1шт.

26

LDR5103005

FRAME

1шт.

27

LDR5201086

BRACKET

1шт.
