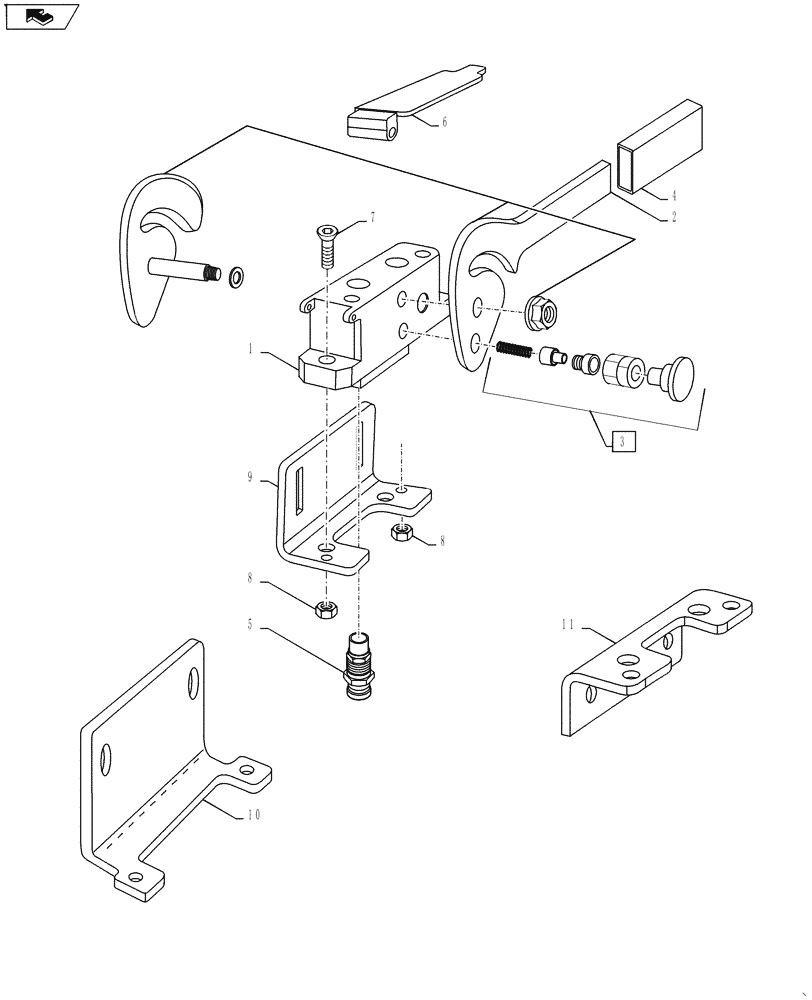

Запчасти Case IH L790 (35.310.02) - LOWER PART 1/2" (35) - HYDRAULIC SYSTEMS

1

LDR10550203

HOUSING

1шт.

2

LDR10550206

HANDLE GRIP

1шт.

3

LDR10550200

SHUT-OFF VALVE

Safety Button

1шт.

4

LDR10550207

HANDLE GRIP

1шт.

5

LDR10550202

COUPLING, QUICK, FEM

2шт.

6

LDR10550215

CAP

1шт.

7

LDR5004061

SCREW

MC6S 8x20

2шт.

8

LDR5011553

NUT,M8

M8

2шт.

9

LDR5219188

BRACKET

1шт.

10

LDR5201207

BRACKET, SUPPORTING

1шт.

11

LDR5201158

BRACKET, SUPPORTING

1шт.
