(35.204.12) - VALVE CONNECTION, LIVE 3RD

Запчасти Case IH L790 (35.204.12) - VALVE CONNECTION, LIVE 3RD (35) - HYDRAULIC SYSTEMS

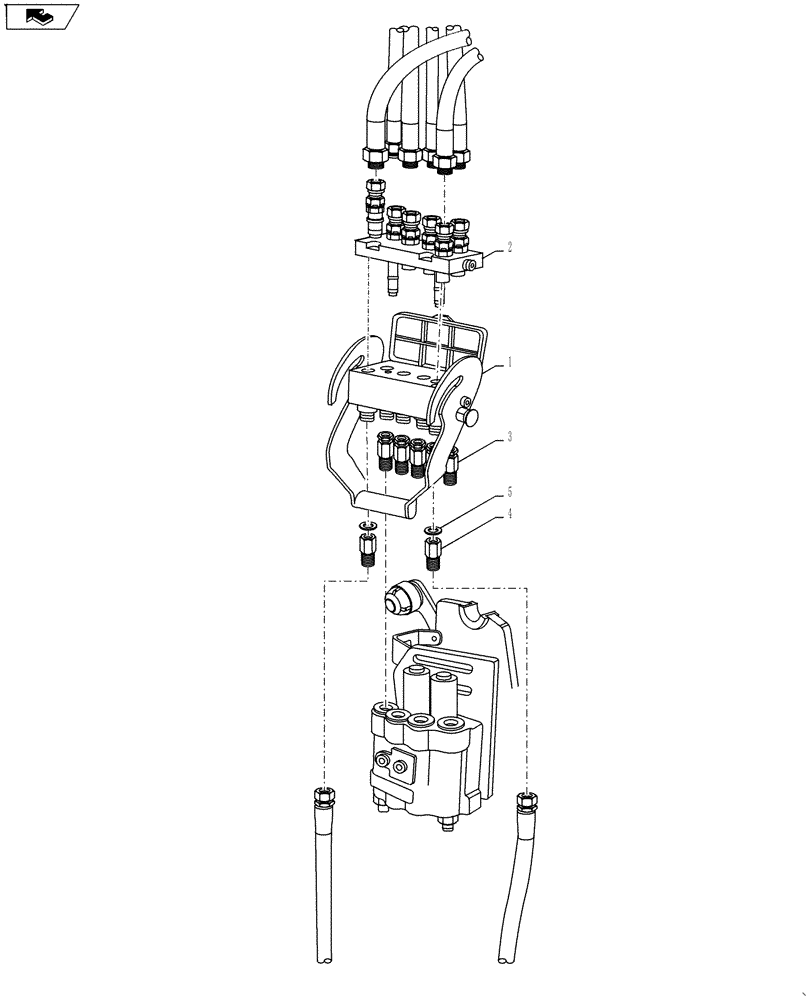

Схема запчастей Case IH L790 - (35.204.12) - VALVE CONNECTION, LIVE 3RD (35) - HYDRAULIC SYSTEMS
home
3
1
5
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR5044924

MOUNTING PLATE

Lower Part

1шт.

2

LDR5044923

MOUNTING PLATE

Upper Part

1шт.

3

LDR5044925

HYD CONNECTOR,M22 x 1.5 ORB x 1/2" NPT

Kit

1шт.

4

LDR1112459

HYD CONNECTOR

2шт.

5

LDR5013905

WASHER

2шт.
