(35.204.09) - HOSE CONNECTION, LIVE 3RD

Запчасти Case IH L790 (35.204.09) - HOSE CONNECTION, LIVE 3RD (35) - HYDRAULIC SYSTEMS

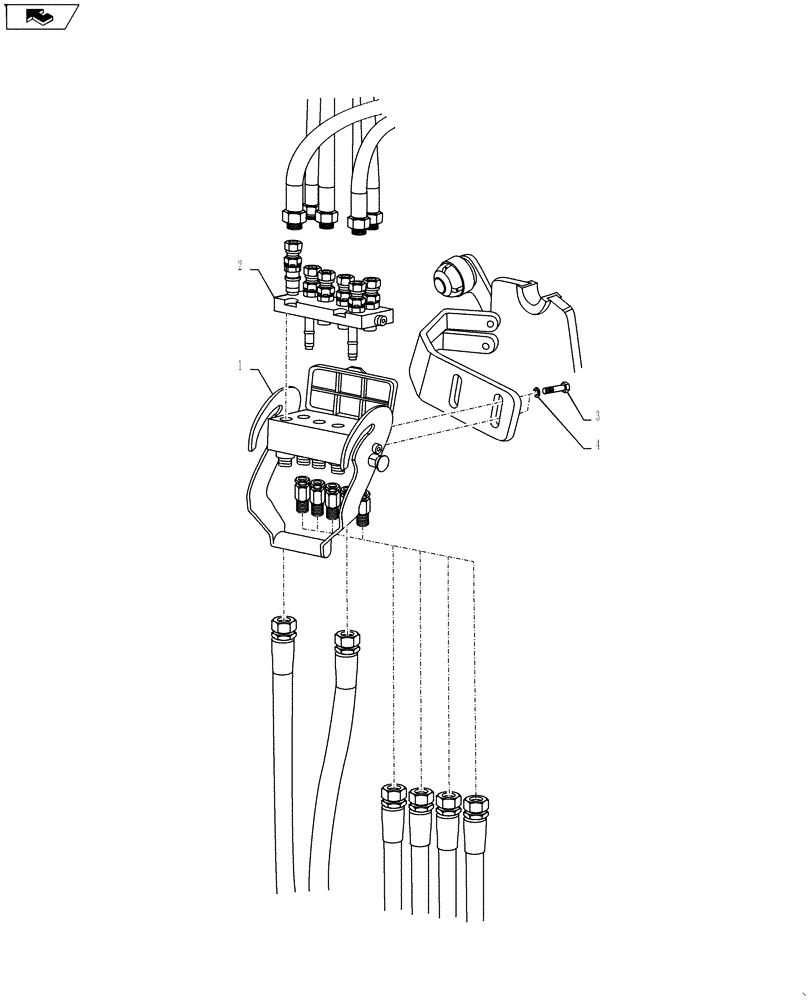

Схема запчастей Case IH L790 - (35.204.09) - HOSE CONNECTION, LIVE 3RD (35) - HYDRAULIC SYSTEMS
4
2
1
3
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

LDR5044945

MOUNTING PLATE

Lower Part

1шт.

2

LDR5044923

MOUNTING PLATE

Upper Part

1шт.

3

LDR5002053

SCREW,M8 x 30mm L

M6S 8x30

2шт.

4

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

BRB 8.4x16

2шт.
