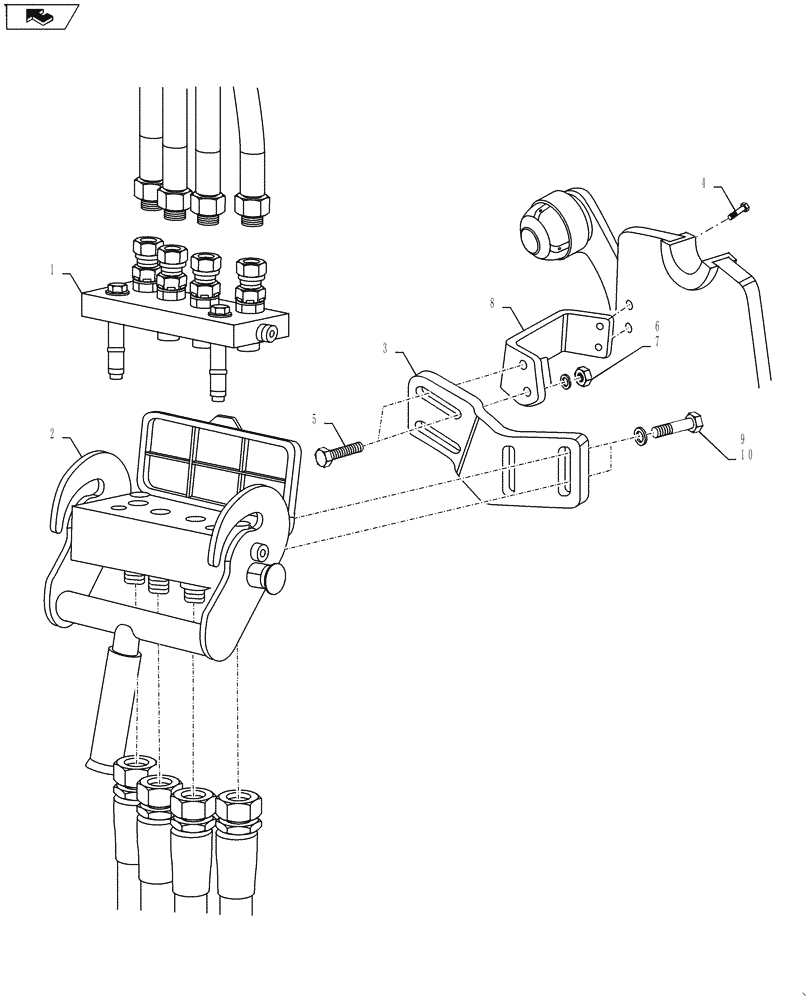

Запчасти Case IH L790 (35.204.06) - HOSE CONNECTION (35) - HYDRAULIC SYSTEMS

1

LDR5045403

MOUNTING PLATE

Upper Part

1шт.

2

LDR5044944

PUSH-PULL COUPLING

Lower Part

1шт.

3

LDR10382842

BRACKET

1шт.

4

LDR5005999

SCREW,M10 x 45mm

M6SF 10x45

2шт.

5

LDR5002084

SCREW,M10 x 35mm, Cl 8.8

M6S 10x35

2шт.

6

LDR5011054

NUT,M10, Cl 8.8

2шт.

7

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

10.5x22x2

2шт.

8

LDR10382843

BRACKET

1шт.

9

LDR5002052

BOLT

M6S 8x25

2шт.

10

LDR5013101

WASHER,8.40mm ID x 16mm OD x 1.50mm Thk

BRB 8.4x16

2шт.
