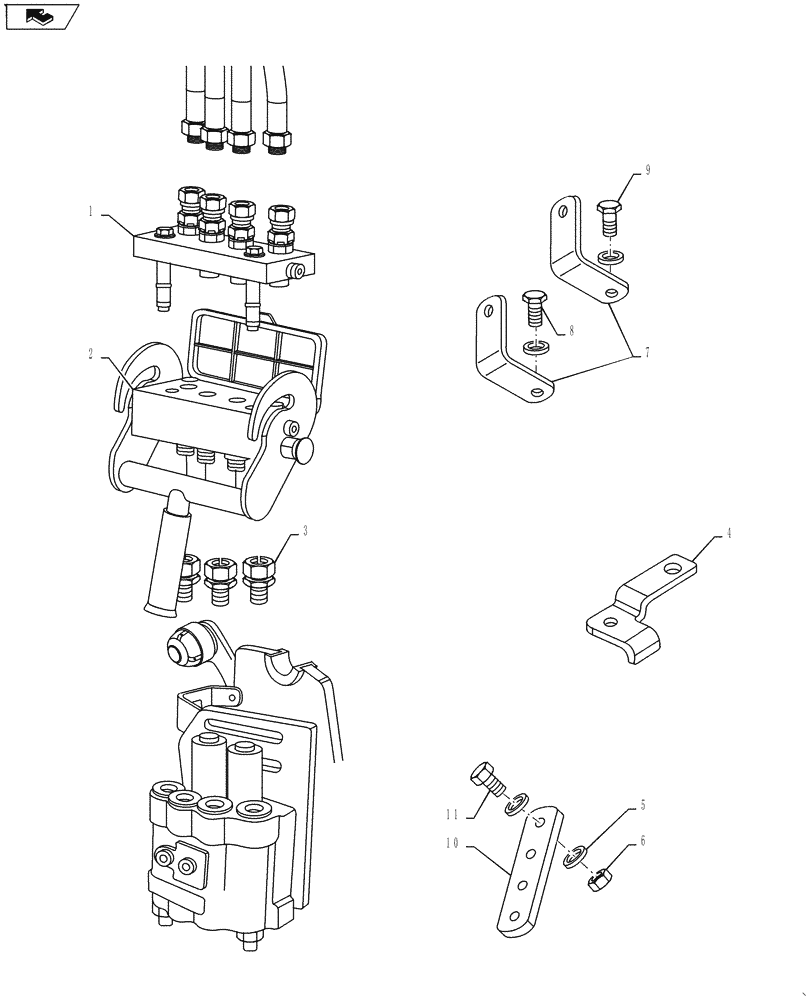

Запчасти Case IH L790 (35.204.03) - VALVE CONNECTION (35) - HYDRAULIC SYSTEMS

1

LDR5045403

MOUNTING PLATE

Upper Part

1шт.

2

LDR5044906

MOUNTING PLATE

Lower Part

1шт.

3

LDR10301552

QUICK MALE COUPLING

4шт.

4

LDR5033765

BRACKET

Q10 Series

1шт.

5

LDR5013110

WASHER,10.50mm ID x 22mm OD x 2mm

10.5x22x2

5шт.

6

LDR5011054

NUT,M10, Cl 8.8

2шт.

7

LDR10301550

BRACKET

Trima, 700-900 Series

1шт.

8

LDR5002051

SCREW,M6S

M6S 8x20

1шт.

9

LDR5002089

BOLT,M10 x 25mm, Cl 8.8

M6S 10x25

1шт.

10

LDR10301551

BRACKET

Quicke

1шт.

11

LDR5002078

SCREW

M6S 10x40

2шт.
